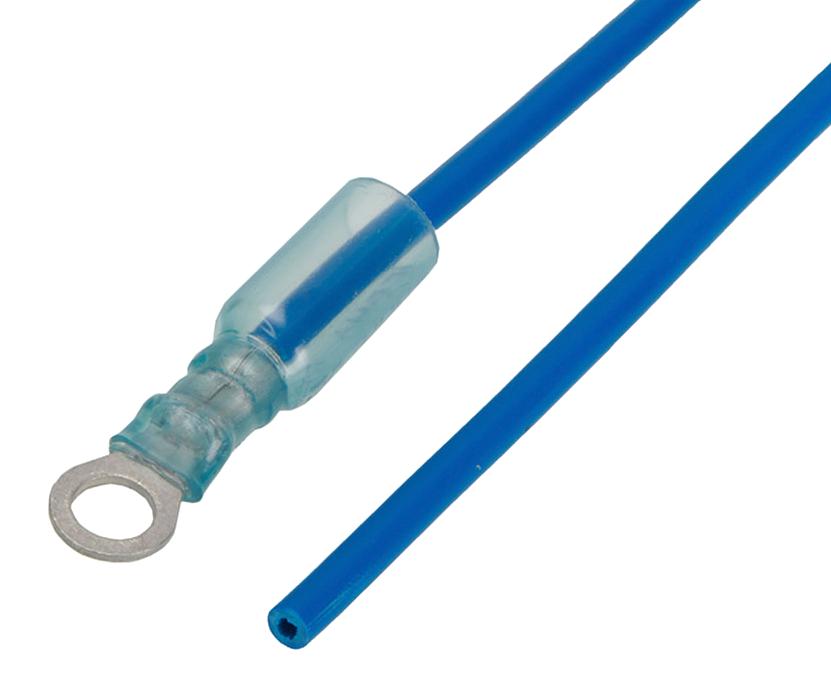

MOLEX 2178511132 Pre-Crimped Lead Assembly
The pre-crimped lead is a solderless, tin-plated Perma-Seal-to-Pigtail assembly, measuring 150.00mm in length and featuring a blue color. Designed for reliable electrical connections, it accommodates a maximum current of 20.0A and a voltage of 600V. Made with PVC resin and tin plating, it is suitable for UL 1015 wire types with a wire size of 16 AWG and insulation diameter of 5.97mm. The product is compliant with RoHS, China RoHS, and REACH standards, ensuring environmental safety and high quality. It is packaged in bags for convenient handling and installation.
MOLEX 2178511132 Pre-Crimped Lead Assembly Specifications:
- Length: 150.00mm
- Color: Blue
- Material - Plating: Tin
- Material - Resin: PVC
- Wire Size AWG: 16
- Wire Insulation Diameter: 5.97mm
- Current - Maximum per Contact: 20.0A
- Voltage - Maximum: 600V
- Packaging: Bag
- Assembly Configuration: Connector to Connector
- Gender: N/A
- Lock to Mating Part: No
- Net Weight: 4.786 grams
- Reference Drawing Number: 2178511112-000
- RoHS and REACH compliant
- UL 1015 wire type
Buy the Buy Molex Off-the-Shelf Pre-Crimped Lead Part Number 2178511132 Online
Purchase the Molex pre-crimped lead assembly online today to enjoy quick, hassle-free installation and dependable connections. Featuring a 150mm length with tin-plated contacts, this solderless pigtail is designed for safe and durable electrical connections. Its PVC resin ensures flexibility and environmental safety, while its compatibility with 16 AWG wire and a maximum current of 20A make it versatile for various applications. Available in a convenient bag, it guarantees high performance and ease of use for professional and DIY projects alike.
Buy Molex 2178511132 now and experience unmatched reliability with high-quality solderless connections ideal for your electrical assemblies.
Frequently Asked Questions
Where can I buy MOLEX 2178511132?
You can click on the BUY or RFQ button to purchase 2178511132 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2178511132?
You can download the 2178511132 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2178511132?
MOLEX
