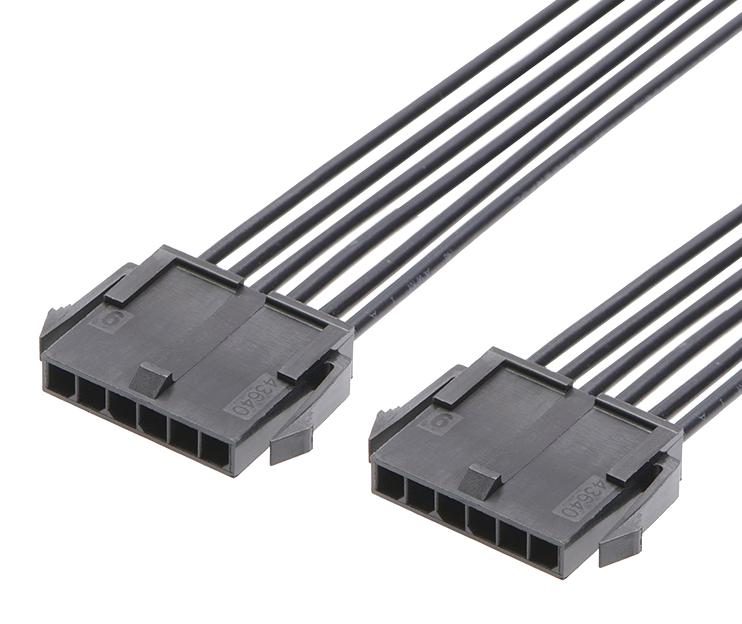

MOLEX 2147521033 Micro-Fit Cable Assembly
Micro-Fit 3.0 cable assemblies provide ready-to-use, versatile solutions with various cable lengths, featuring a 3.00mm pitch connector capable of handling currents up to 8.5A. Designed for prototyping and production, these high-density, low-power connections include dual-ended black nylon resin connectors in single-row configurations for flexible designs, utilizing UL 10002 discrete wire. The assembly features a Micro-Fit 3.0 male-to-male configuration, ideal for power and wire-to-wire applications, ensuring reliable and efficient electrical performance in industrial and electronic systems.
MOLEX 2147521033 Micro-Fit Cable Assembly Specifications:
- Connector Type: Micro-Fit 3.0 Male-to-Male
- Number of Circuits: 3
- Cable Length: 600.00mm
- Color: Black
- Material - Resin: Nylon
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire Type: Discrete Wire UL 10002
- Current - Maximum Per Contact: 8.5A
- Pitch - Mating Interface: 3.00mm
- RoHS Compliant: Yes
- Halogen-Free: No
- Application: Power, Wire-to-Wire
- Gender: Male-Male
- Lock to Mating Part: Yes
Buy the Molex 2147521033 – Reliable Micro-Fit 3.0 for Industrial Applications
Purchase the Molex Micro-Fit Cable Assembly now—designed for power, wire-to-wire connections, and versatile applications. Features dual-ended black nylon connectors, a 3.00mm pitch, and a 600mm length for easy integration into your industrial, electronic, or prototype projects. Made with UL 10002 discrete wire, it offers reliable performance with a maximum current of 8.5A per contact. Perfect for power distribution, low-power circuits, or high-density connections, this assembly ensures durability and efficiency in your electrical systems.
Get Molex 2147521033 today—built for reliable power connections with high-density low-power design and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2147521033?
You can click on the BUY or RFQ button to purchase 2147521033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147521033?
You can download the 2147521033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147521033?
MOLEX
