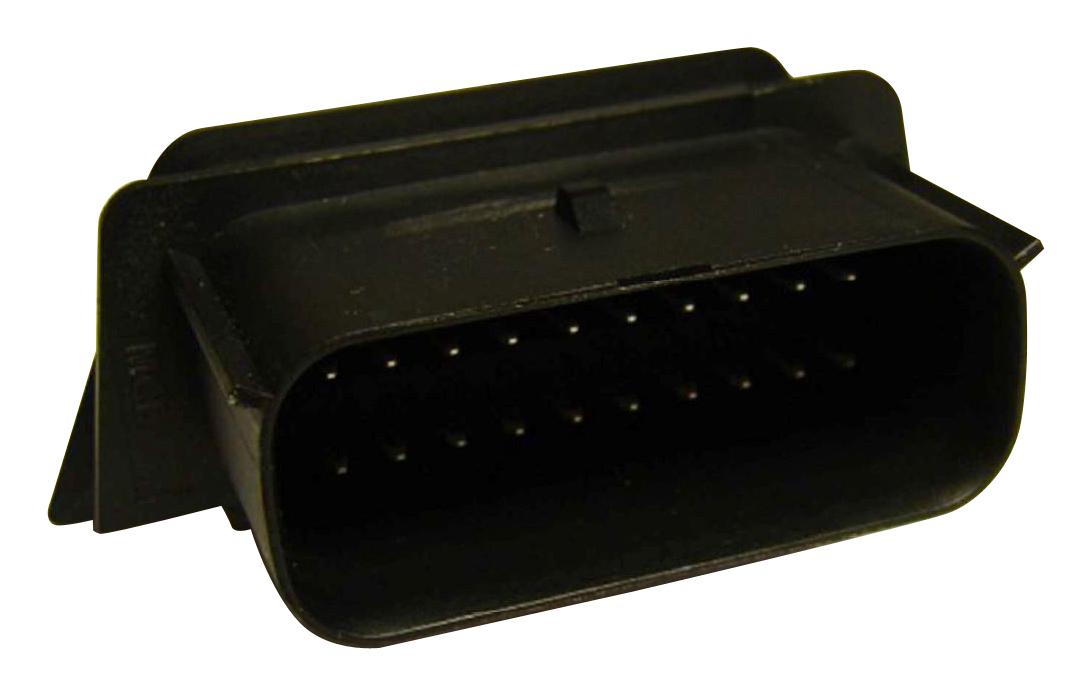

MOLEX 348302001 Power Connector
The MX150 2x10 Dual Row Right-Angle Header is a reliable power and wire-to-board connector designed for industrial applications. It features 20 circuits with polarisation A, a solder tail, and a sturdy black resin housing. The connector supports up to 125°C operating temperature and provides a maximum current of 14V DC per contact. Made from durable copper alloy with tin plating, it ensures optimal electrical conductivity and long-term performance. Suitable for applications requiring high durability and secure connections, it offers excellent mating cycles and compatibility with sealed female connectors.
MOLEX 348302001 Power Connector Specifications:
- Circuits (Loaded): 20
- Maximum Circuits: 20
- Color - Resin: Black
- Durability (mating cycles max): 50
- First Mate / Last Break: Yes
- Glow-Wire Capable: No
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Net Weight: 22.620 grams
- Number of Rows: 2
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60 mm
- Pitch - Mating Interface: 3.50 mm
- Temperature Range - Operating: -40°C to +125°C
- Termination Interface: Style - Through Hole - Compliant Pin
- Current - Maximum per Contact: 14V DC
- Process Temperature max.: 260°C
- Duration at Max. Process Temperature: 10 seconds
- Lead-free Process Capability: Yes
- Max. Cycles at Max. Process Temperature: 50
- Reference - Drawing Numbers: PS-34829-001-001
- Application Specification: AS-34829-001-001
- Packaging Specification: PK-34830-001
Buy the Molex 348302001 – Reliable Power Connector for Industrial Applications
Secure your applications with the Molex Power Connector designed for durability and high performance. Featuring 20 circuits in a right-angle configuration, it operates reliably from -40°C to +125°C with a maximum current of 14V DC per contact. Made from copper alloy with tin plating, it offers long-lasting electrical conductivity and withstands frequent mating cycles. Whether for industrial automation or power distribution, this connector ensures secure, efficient, and compliant connections suitable for demanding environments, making it your trusted choice for versatile electrical solutions.
Buy Molex 348302001 now and experience unmatched reliability and high-performance power connections for industrial needs.
