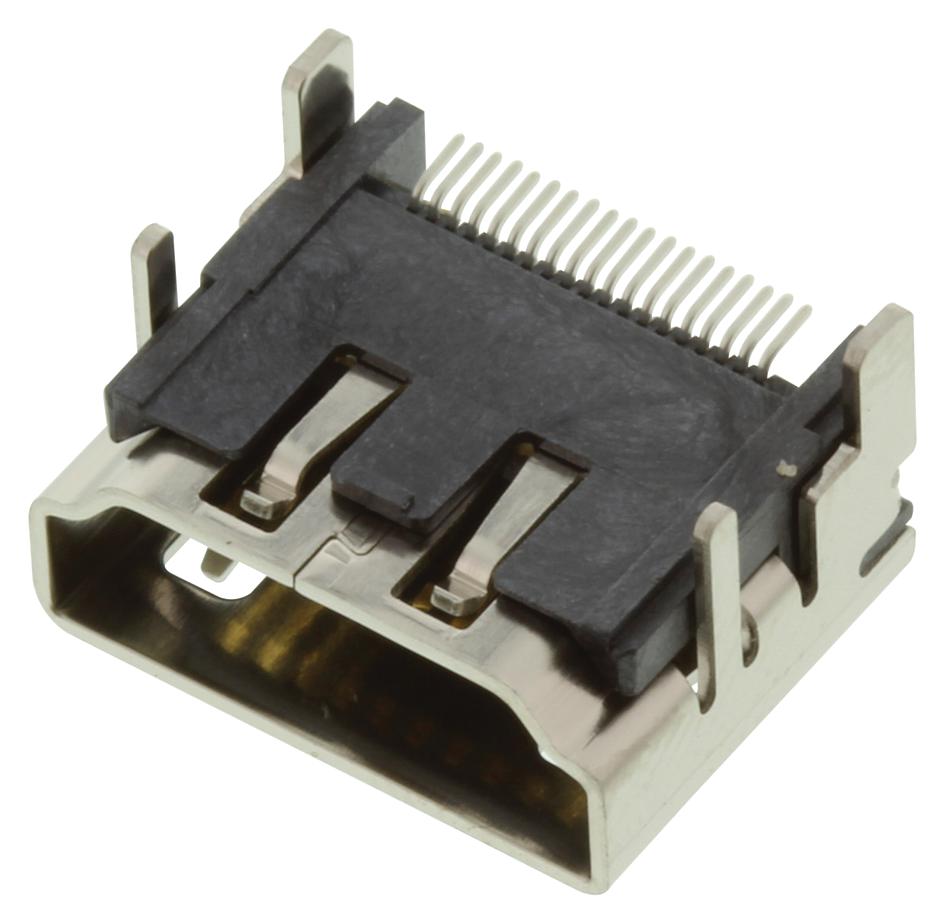

MOLEX 471511071 HDMI Receptacle
This HDMI receptacle features a 0.50mm pitch with a right-angle design, designed for high-density multimedia applications. It has a front solder tab length of 1.80mm, gold-plated contacts for reliable signal transmission, and is housed in a black, lead-free, waterproof, and dustproof resin. The connector supports operating temperatures from -20°C to +85°C, with a maximum current of 0.5A and voltage rating of 40V DC. It is compatible with various HDMI cables and adapters, making it ideal for compact, high-performance multimedia connections.
MOLEX 471511071 HDMI Receptacle Specifications:
- Pitch - Mating Interface: 0.50mm
- Contact Plating: Gold
- Contact Material: Copper Alloy
- Temperature Range - Operating: -20°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 40V DC
- Housing Color: Black
- Orientation: Right Angle
- Packaging: Embossed Tape on Reel, Without Flange
- Part Number: 471511071
- Pin Count: 19
- Waterproof / Dustproof: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin-Bismuth
- Net Weight: 2.197g
- Finish: Gold plating, Bismuth tin
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Family: VO Connectors
- Application: High Definition Multimedia Interface (HDMI)
Buy the Molex 471511071 – Reliable HDMI Receptacle for Industrial Applications
Purchase the Molex HDMI Receptacle 471511071 online today and enjoy reliable, high-quality multimedia connectivity. This right-angle connector features a 0.50mm pitch with gold-plated contacts, ensuring excellent signal integrity. Its waterproof, dustproof, and lead-free design makes it ideal for demanding industrial and professional multimedia systems. With a temperature range of -20°C to +85°C, suitable for various environments, and a compact, durable structure, this connector guarantees robust performance for your high-definition multimedia applications.
Order your Molex Series47151 HDMI Receptacle today and ensure your multimedia connections are dependable and industry-ready.
