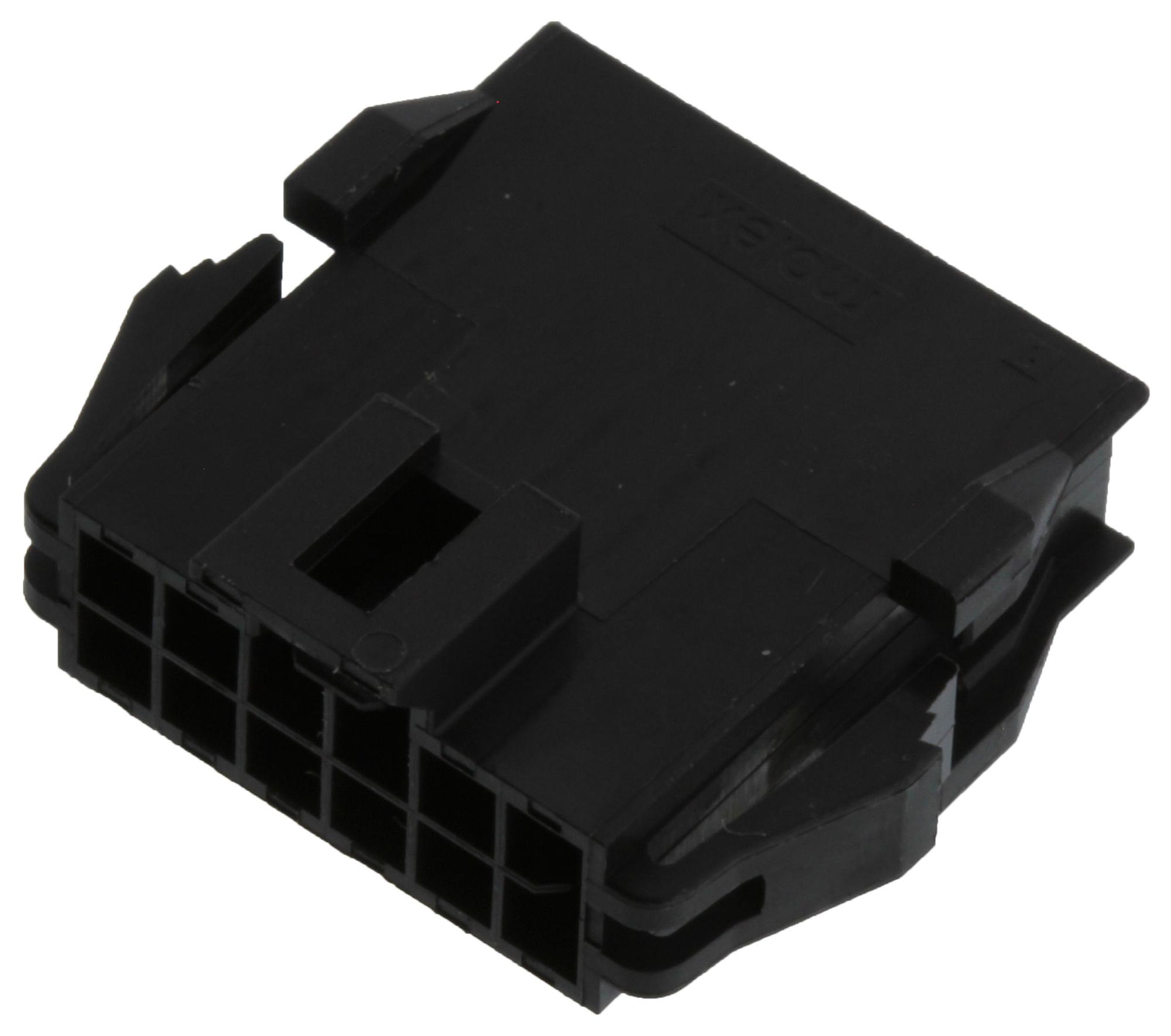

MOLEX 2014441212 Nano-Fit Power Connector
Nano-Fit Power Connectors are compact, fully isolated, and keying options enable secure, cross-mating protection. These 2.50mm pitch connectors offer ultra-low mate force, enhanced signal integrity, and space-saving designs suitable for various applications like consumer appliances, automotive, industrial equipment, and medical devices. Their robust construction includes multiple contact plating options, high dielectric withstand voltage, and optimized PCB mounting for reliable long-term performance. Designed for quick assembly with color-coding and mechanical keying, they improve efficiency while reducing operator fatigue and assembly errors.
MOLEX 2014441212 Nano-Fit Power Connector Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms change over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: SN
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (Tin), 50 cycles (Gold)
- Housing material: Receptacle Nylon UL 94V-0, Header LCP UL 94V-0
- Contact material: High-Conductivity Copper
- Plating options: Tin, 381 to 762 microns Gold
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40 to +105°C (Tin), -40 to +115°C (Gold)
- RoHS compliant, Halogen Free, Glow-Wire Capable
- Packaging: Terminals — Reel, Headers — Tray, Receptacles — Bag
- UL File No.: 29179, CSA File No.: LR19980
Buy the Buy Molex Nano-Fit Power Connectors Part Number 2014441212 Online
Secure your projects with Molex Nano-Fit Power Connectors. Featuring a 2.50mm pitch, ultra-low mate force, and space-saving design, these connectors deliver reliable power connections for consumer electronics, automotive, industrial, and medical applications. Their keying options and color-coding enable quick, error-free assembly, reducing labor time and costs. Crafted from durable materials, with high dielectric withstand voltage, they ensure long-term performance and safety. Purchase online today for fast delivery and impeccable quality in your electronic and power systems.
Order your Molex Nano-Fit Power Connectors 2014441212 today and ensure reliable, space-efficient power connections for your high-performance projects.
