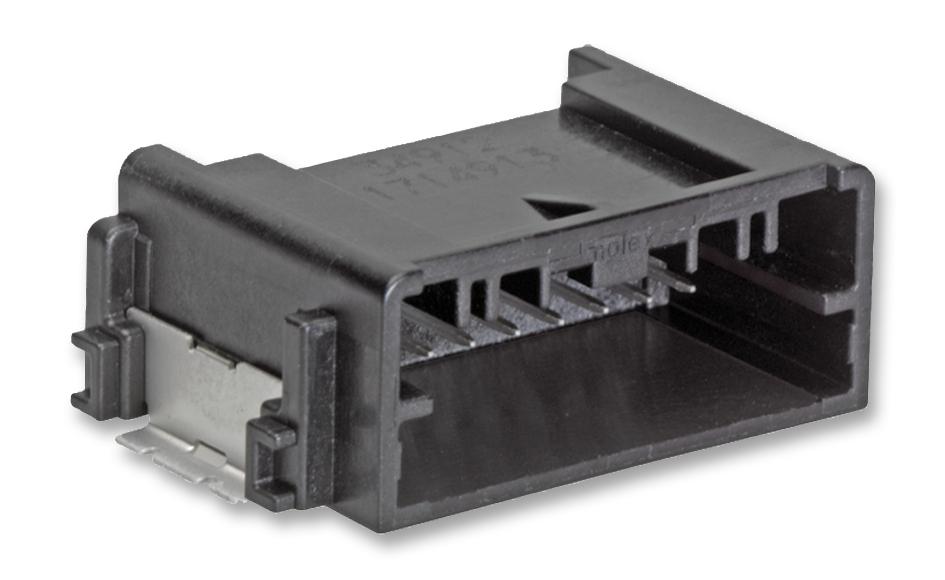

MOLEX 349128080 Mini50 Connector
The Mini50 Unsealed Header is a right-angle, surface-mount, single-row connector with 8 circuits designed for power and signal applications. Made from polyester alloy with tin over nickel plating, it ensures reliable electrical connectivity and durability in various operating environments. This connector features a 2.00mm pitch, is RoHS and REACH compliant, and can operate from -40°C to +105°C. Suitable for wire-to-board connections, it has a maximum current of 4.0A per contact and a maximum voltage of 500V DC, with a compact and robust design for industrial and electronic assemblies.
MOLEX 349128080 Mini50 Connector Specifications:
- Number of Circuits: 8
- Orientation: Right Angle
- Color - Resin: Black
- Terminator Material: Tin over Nickel
- Contact Material: Brass
- Material - Resin: Polyester Alloy
- Pitch: 2.00mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V DC
- Packaging: Embossed Tape on Reel
- UL, RoHS, China RoHS, REACH SVHC compliant
Buy the Molex Series Mini50 Power Signal Connector: 0349128080
Secure reliable power and signal connections with the Mini50 Connector, featuring 8 circuits, right-angle SMT design, and RoHS compliance. Ideal for industrial, electronic, and power applications, its 2.00mm pitch ensures precise placement. Constructed from durable polyester alloy with tin over nickel plating, it withstands temperatures from -40°C to +105°C, offering a maximum current of 4.0A per contact and a maximum voltage of 500V DC. Designed for easy mounting, the Mini50 is perfect for compact, high-performance electronic assemblies.
Order your Molex Series Mini50 0349128080 today and give your electronic projects the dependable, space-efficient connection solution.
Frequently Asked Questions
Where can I buy MOLEX 349128080?
You can click on the BUY or RFQ button to purchase 349128080 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 349128080?
You can download the 349128080 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 349128080?
MOLEX
