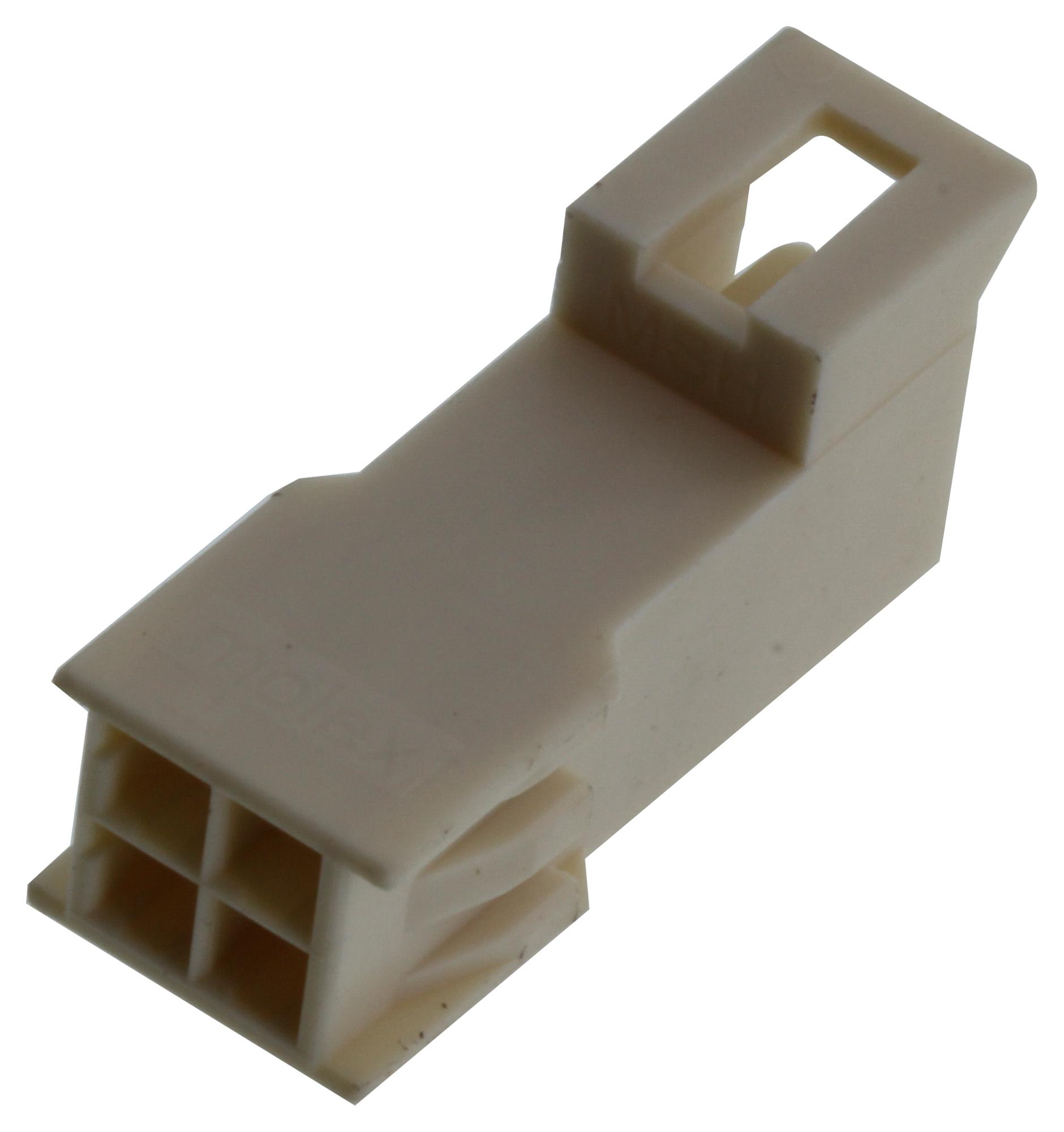

MOLEX 2014442104 Nano-Fit Power Connector
Nano-Fit Power Connectors offer compact, fully isolated headers with optional TPA retainers for reliable connections in space-constrained applications. Featuring multiple keying and color-coded options, they prevent cross-mating and enable faster assembly. Their ultra-low mating force reduces operator fatigue, while their robust design ensures long-term performance with stable contact points and secondary current paths. Suitable for consumer electronics, automotive, aerospace, and industrial systems, these connectors support high-density PCB layouts with minimal real estate, providing superior signal integrity and ease of assembly.
MOLEX 2014442104 Nano-Fit Power Connector Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: Not specified
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Receptacle - Nylon UL 94V-0, Header - LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin or 381) (15") Gold or 762)) (30") Gold
- Solder Tail Area: Tin
- Underplating: Nickel
- PCB Thickness: 1.60 mm and 2.40 mm
- Operating Temperature: -40°C to +105°C (tin), -40°C to +115°C (gold)
Buy the Molex 2014442104 – Reliable Nano-Fit Power Connectors for Industrial Applications
Enhance your electronic assemblies with Molex Nano-Fit Power Connectors, known for their compact size, reliable contacts, and ease of installation. These connectors feature fully isolated terminals, optional TPA retainers, and multiple keying options, minimizing the risk of cross-mating, and enabling quick, secure connections in space-constrained environments. Suitable for industrial, automotive, aerospace, and consumer applications, they support high-density PCB layouts and provide stable long-term performance. Order online today for fast delivery and quality assurance in your electronic projects.
Order your Molex Series 2104 Nano-Fit Power Connectors today and ensure your projects benefit from dependable, space-efficient electrical connections.
