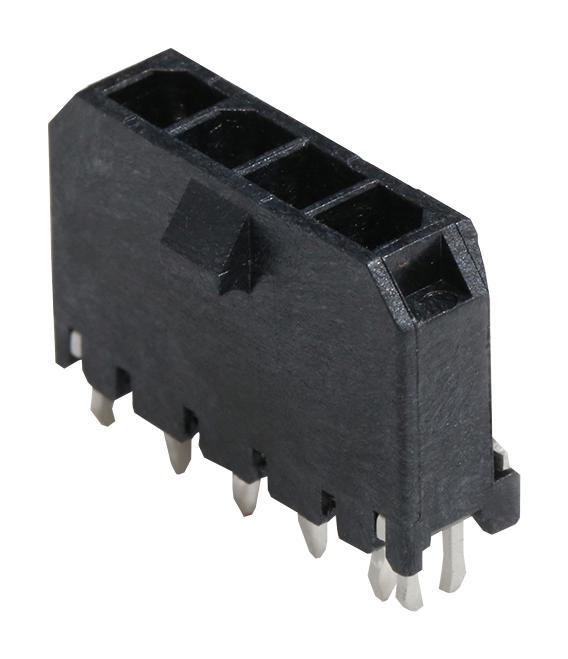

MOLEX 436500421 Micro-Fit 3.0 Connector
The MOLEX 43650-0421 is a Micro-Fit 3.0 vertical header, part of the 43650 series, designed for robust power and wire-to-board connections. This header features a 3.00mm pitch, a single-row layout, and accommodates 4 circuits. It incorporates a PCB press-fit metal retention clip for secure mounting and is constructed with high-temperature thermoplastic resin and brass material with tin plating. The header is glow-wire capable, meeting IEC 60335-1 safety standards, and is RoHS compliant, ensuring environmental responsibility. It is suitable for applications requiring reliable power transmission and is commonly used in various electronic devices and appliances.
MOLEX 436500421 Micro-Fit 3.0 Connector Specifications:
- Product Family: PCB Headers
- Application: Power, Wire-to-Board
- Series: 43650
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Resin: High Temperature Thermoplastic
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Mates With: Micro-Fit 3.0 Receptacle Housing 43645, Micro-Fit 3.0 TPA Receptacle Housing 171850
Buy the 43650-0421 MOLEX Micro-Fit 3.0 Connector | myMectronic
Purchase the MOLEX 43650-0421 Micro-Fit 3.0 Connector securely and conveniently online.
Buy Now
