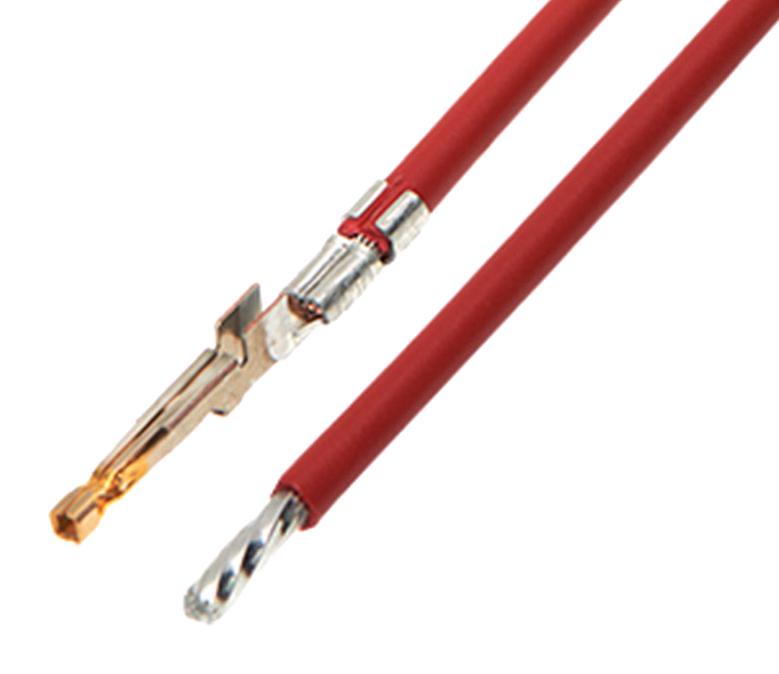

MOLEX 2174712211 Crimped Lead Assembly
Molex’s pre-crimped leads offer a cost-effective, reliable solution for prototyping, pre-production, and mass manufacturing. The 217471 series features ultra-fit female-to-pigtail cables with 75mm length, 18 AWG wire gauge, and red resin insulation. Made from high-conductivity copper with gold plating, they support a maximum voltage of 600V and current of 12A per contact. These UL 1061 rated cables are designed for quick, secure connections across a range of Molex connector families, reducing time-to-market and ensuring dependable electrical performance.
MOLEX 2174712211 Crimped Lead Assembly Specifications:
- Length: 75.00mm
- Wire Gauge: 18 AWG
- Insulation Color: Red
- Material - Metal: High Conductivity Copper
- Plating: Gold
- Voltage Rating: 600V AC/DC
- Current - Maximum: 12A per contact
- Termination Style: Crimp
- Wire Insulation Diameter: 2.03-2.39mm
- Compatibility: Molex connector families
Buy the Molex 2174712211 – Reliable Crimped Leads for Industrial Applications
Enhance your production process with Molex’s ultra-fit crimped lead assembly. Designed for quick, secure connections, this 75mm red insulated cable supports 600V and 12A current. Made from high-quality copper with gold plating, it ensures reliable electrical performance. Suitable for prototyping and mass production, this UL rated, pre-crimped connector is easy to install, reduces assembly time, and helps accelerate your project timeline. Perfect for application-specific connector configurations and industrial electronics integration.
Get Molex 2174712211 today—built for precision, high conductivity, and long-lasting durability.
