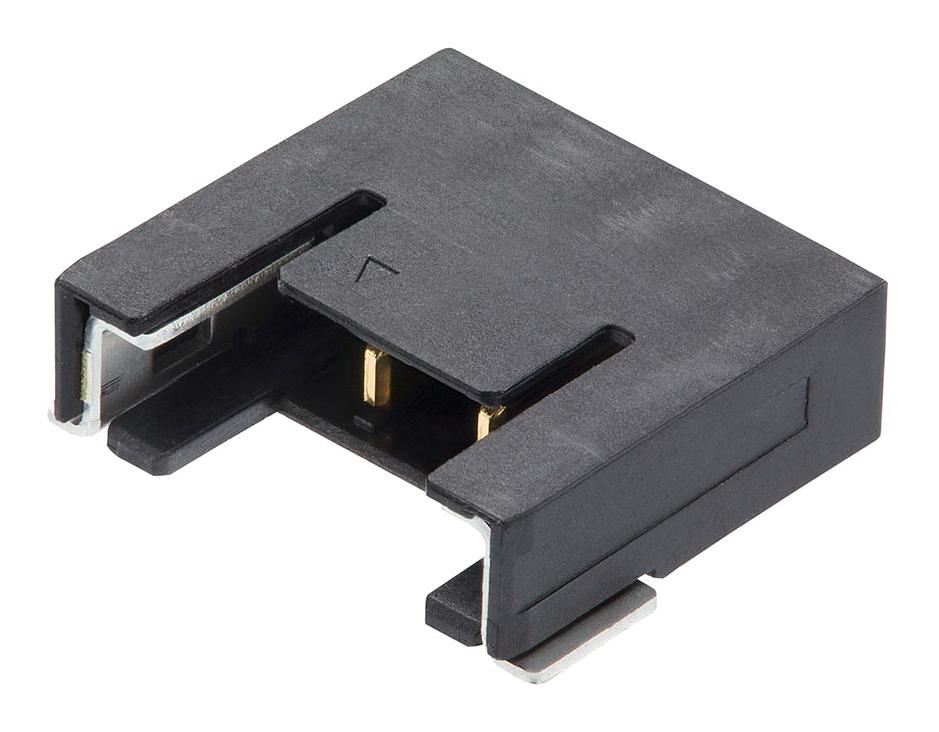

MOLEX 2053380004 Pico-Lock PCB Header
The MOLEX 205338-0004 is a Pico-Lock PCB header within the 205338 series, designed for secure wire-to-board connections. This header features a 2.00mm pitch and a right-angle orientation, making it suitable for compact designs. It incorporates a positive lock mechanism to ensure reliable mating and is finished with gold plating for excellent conductivity. The header is ideal for applications requiring a robust and space-efficient connection, and is compliant with RoHS standards. It is compatible with Pico-Lock housings.
MOLEX 2053380004 Pico-Lock PCB Header Specifications:
- series: 205338
- application_overview: Signal, Wire-to-Board
- circuits_maximum: 4
- color_resin: Black
- durability_mating_cycles_max: 30
- guide_to_mating: No
- part_lock_to_mating_part: Yes
- mated_height: 2.60mm
- material_metal: Copper Alloy
- material_plating: Gold
- material_resin: Polyamide
- net_weight_mg: 282.060
- number_of_rows: 1
- orientation: Right Angle
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- plating_min_mating: 0.100µm
- polarized_to_mating_part: Yes
- shrouded: Fully
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 191130509775
