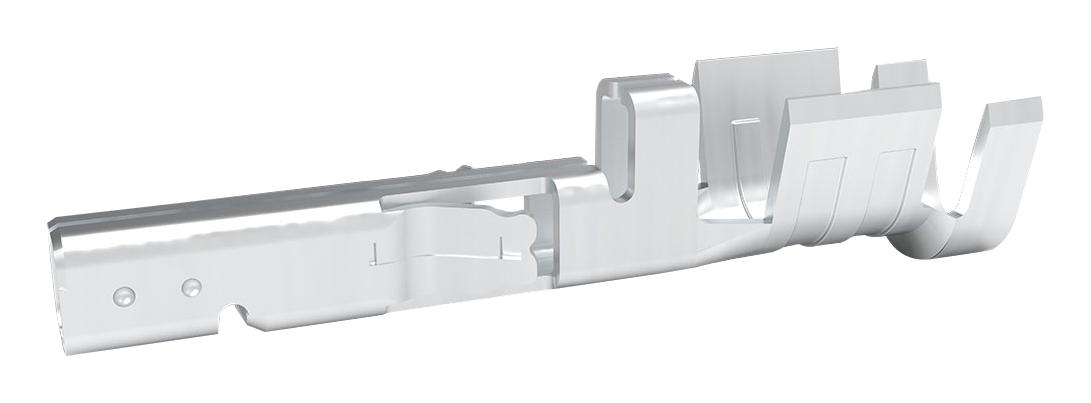

MOLEX 2064600021 Micro-Fit+ Crimp Terminal
The MOLEX 206460-0021 is a Micro-Fit+ crimp terminal specifically engineered for robust power and wire-to-board connections. This female terminal utilizes a high copper alloy construction with a tin over nickel plating for enhanced corrosion resistance and reliable signal transmission. Designed to accommodate wire sizes ranging from 20 to 24 AWG (0.20-0.50 mm²), it provides a secure and durable connection suitable for a variety of industrial applications. The terminal is RoHS compliant and has a maximum current rating of 12.5A and a maximum voltage of 600V AC (RMS)/DC, ensuring safe and efficient power delivery. It is designed to be used with Micro-Fit Receptacle Housing.
MOLEX 2064600021 Micro-Fit+ Crimp Terminal Specifications:
- Overview: Micro-Fit Connector System
- Product Family: Crimp Terminals
- Series: 206460
- Application: Power, Wire-to-Board
- Datasheet Order No: 987651-9552
- Product Name: Micro-Fit+
- UPC: 191130125357
- Durability (mating cycles max): 25
- Gender: Female
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Net Weight: 0.066/g
- Packaging Type: Reel
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm
- Wire Size AWG: 20, 22, 24
- Wire Size mm²: 0.20-0.50
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC (RMS)/DC
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant
- RoHS Phthalates: Not Contained
Buy the 206460-0021 MOLEX Micro-Fit+ Crimp Terminal | myMectronic
Securely purchase the MOLEX 206460-0021 Micro-Fit+ Crimp Terminal online for reliable connectivity.
