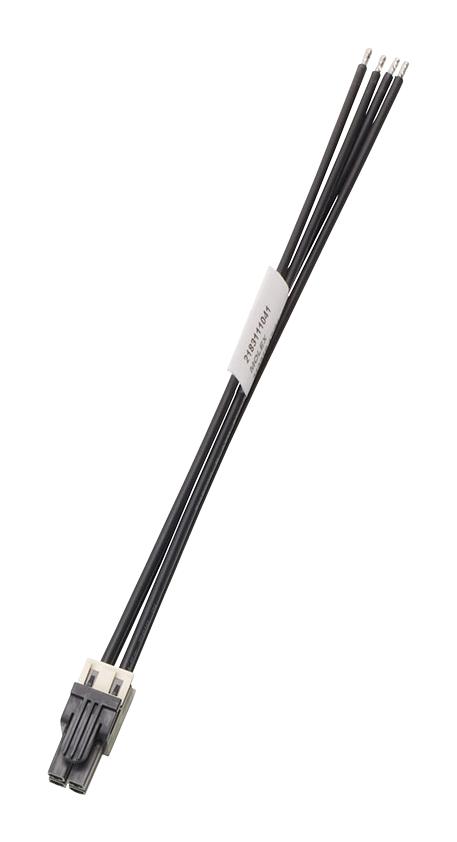

MOLEX 2183111042 Power Connector Assembly
The Mini-Fit Sigma dual-row cable assembly is designed for reliable electrical connections in automotive, industrial, consumer electronics, telecommunications, and medical devices. Featuring tin-plated brass contacts and a durable nylon housing, it offers a current capacity of 11.5A and a maximum voltage of 600VAC/DC. The assembly supports 16 AWG wire size, utilizes UL 11028 cable, and is glow wire capable, meeting European safety standards. With positive locking housings, polarized mating, and compatibility with pigtail connections, it withstands at least 30 mating cycles in temperatures from -20°C to +105°C. Certified by UL and CSA, its black finish and 4.2mm pitch make it ideal for secure, high-quality electrical connections.
MOLEX 2183111042 Power Connector Assembly Specifications:
- Pitch: 4.20mm
- Number of Rows: Dual
- Current Rating: 11.5A
- Voltage Rating: 600VAC/DC
- Wire Size: 16 AWG
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Cable Length: 300.00mm
- Housing Color: Black
- Assembly Type: Cable Assembly
- Connection Style: Pigtail
- Operating Temperature Range: -20°C to +105°C
- Mating Cycles: At least 30
- Certifications: UL (E29179), CSA (LR19980)
- Glow wire capable: Yes
- Maximum Wire Insulation Diameter: 1.98-2.55mm
- Locking Mechanism: Positive lock with thumb latch
Buy the Buy Molex Mini-Fit Sigma Dual-Row Power Connector Part Number 2183111042 Online
Enhance your electrical systems with the reliable Molex power connector assembly. Designed with tin-plated brass contacts, nylon housing, and a secure locking mechanism, it delivers 11.5A at 600VAC/DC. Suitable for automotive, industrial, and electronic applications, it supports 16 AWG wire, withstands over 30 mating cycles, and operates in temperature ranges from -20°C to +105°C. Certified by UL and CSA, and glow wire capable, it offers durable and safe connections for versatile projects.
Order your Molex Series218311 2183111042 power cable assembly today and ensure secure, high-current connections in your electrical projects.
