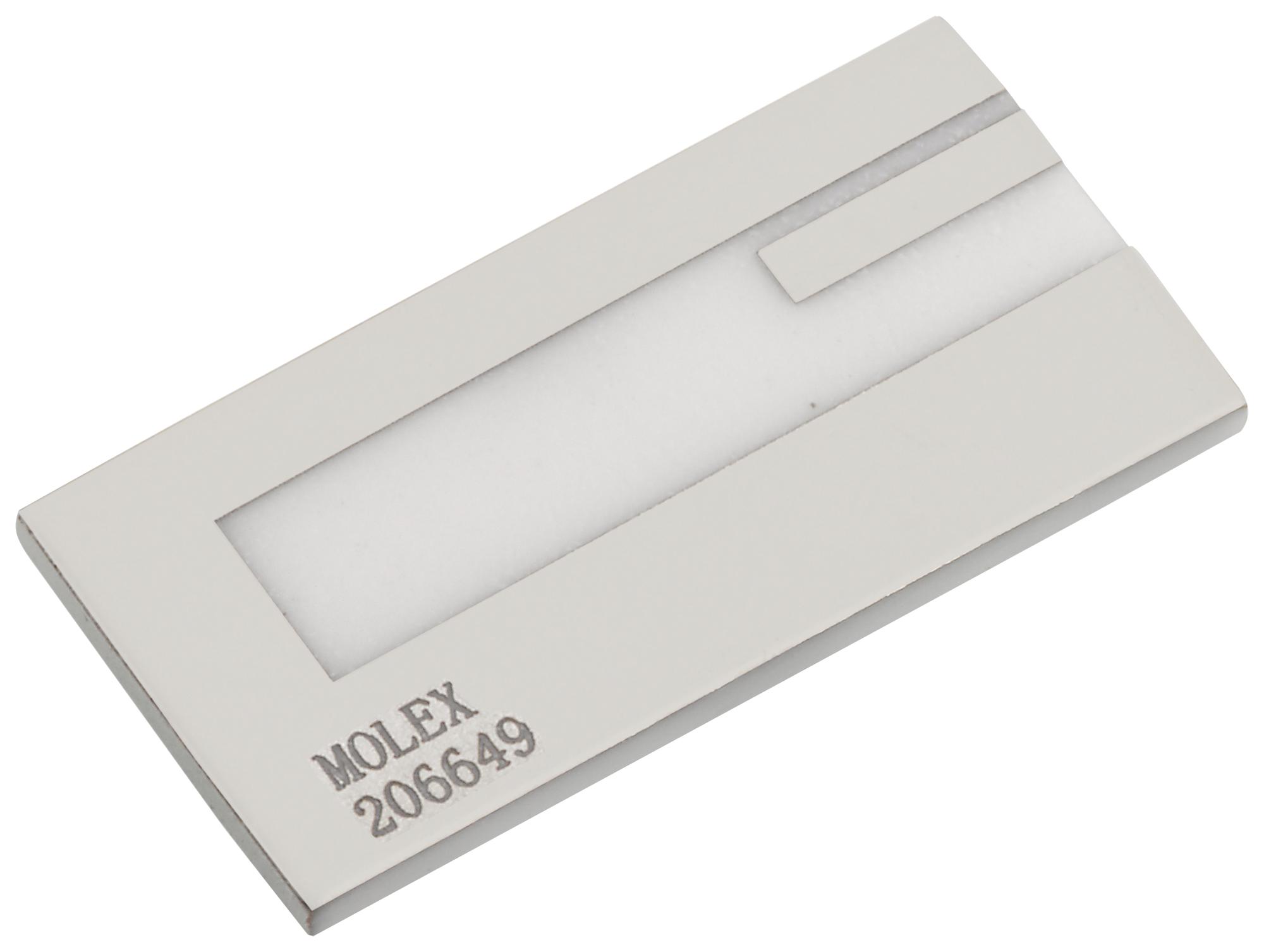

MOLEX 2066490001 Cellular Antenna
This LTE cellular ceramic antenna operates within 698MHz to 960MHz frequency range, featuring a low-profile SMT design suitable for surface mounting. It offers omnidirectional radiation pattern with peak gain values of 0.5 dBi at 698 MHz, 0.8 dBi at 791 MHz, 0.9 dBi at 698 MHz, and 1.1 dBi at 824 MHz. The antenna's dimensions include a 20.00mm length, 1.20mm thickness, and 10.00mm width, making it compact for space-constrained applications. RoHS compliant and halogen-free, it ensures environmental safety and durability in cellular communication devices.
MOLEX 2066490001 Cellular Antenna Specifications:
- Frequency Range: 698-960MHz
- Dimensions: Length 20.00mm, Width 10.00mm, Thickness 1.20mm
- Mounting Style: Surface Mount
- Net Weight: 0.712 grams
- Cable Length: 20.00mm
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Peak Gain: 0.5 dBi at 698 MHz, 0.8 dBi at 791 MHz, 0.9 dBi at 698 MHz, 1.1 dBi at 824 MHz
- Return Loss: -4 to -7 dB across bands
- Total Efficiency: 50-55%
- Material: Ceramic
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Certifications: RoHS compliant
- Application: Cellular communication, LTE devices
Buy the Molex Series LTE Cellular Antennas: 698-960MHz Ceramic SMT Antenna
Experience reliable cellular connectivity with this high-performance LTE ceramic antenna offered in a compact surface mount design. Operating from 698MHz to 960MHz, it provides omnidirectional radiation and peak gain up to 1.1 dBi across multiple bands. Its low-profile, RoHS-compliant ceramic construction ensures durability and safety for mobile, IoT, and wireless communication devices. Easy to install, lightweight, and efficient, this antenna is ideal for space-constrained environments requiring stable, high-quality signal transmission in various telecom applications.
Get Molex 2066490001 today—built for precision and long-lasting durability in cellular communication devices.
Frequently Asked Questions
Where can I buy MOLEX 2066490001?
You can click on the BUY or RFQ button to purchase 2066490001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2066490001?
You can download the 2066490001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2066490001?
MOLEX
