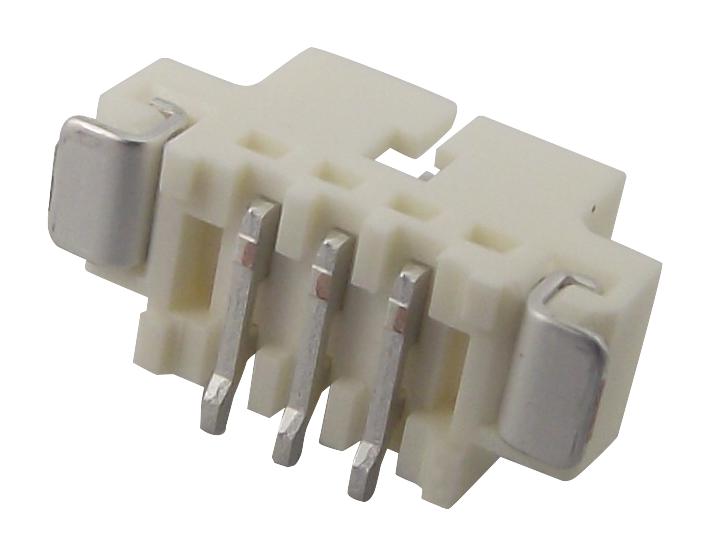

MOLEX 533980371 PicoBlade Connector
The PicoBlade Connector System is a 1.25mm pitch, surface-mount, vertical header suitable for wire-to-board connections. Designed with three circuits, it features a durable phosphor bronze contact material with tin plating, supporting up to 1A current at 125V. Operating within a temperature range of -40°C to +85°C, it includes a secure locking mechanism, shrouded design, and PCB retention features. Its compact size, lightweight construction, and compliance with RoHS standards make it ideal for compact electronic assemblies in various industrial and consumer applications.
MOLEX 533980371 PicoBlade Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Number of Rows: 1
- Circuits (Loaded): 3
- Circuits (maximum): 3
- Color - Resin: Natural
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Terminals: Surface Mount
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Durability (mating cycles max): Not specified
- First Mate / Last Break: Yes
- Lock to Mating Part: Yes
- Shrouded: Yes
- Polarized to Mating Part: Yes
- Guide to Mating Part: No
- PCB Retention: Yes
- PCB Locator: No
- Net Weight: 147.700 mg
- Packaging Type: Embossed Tape on Reel
- Orientation: Vertical
Buy the Molex Series PicoBlade Header: 533980371
Enhance your electronic assembly with the Molex PicoBlade Connector, a reliable 1.25mm pitch, surface-mount header capable of supporting 1A current at 125V. Its durable phosphor bronze contacts with tin plating ensure long-term performance. The shrouded, vertical design with PCB retention guarantees secure connections in space-constrained environments. RoHS compliant and operating within -40°C to +85°C, this versatile connector is ideal for industrial, consumer, and electronics applications requiring compact, durable wire-to-board connections. Purchase online today for quality assured assembly and streamlined production.
Order your Molex Series PicoBlade 533980371 today and secure reliable, compact wire-to-board connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 533980371?
You can click on the BUY or RFQ button to purchase 533980371 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 533980371?
You can download the 533980371 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 533980371?
MOLEX
