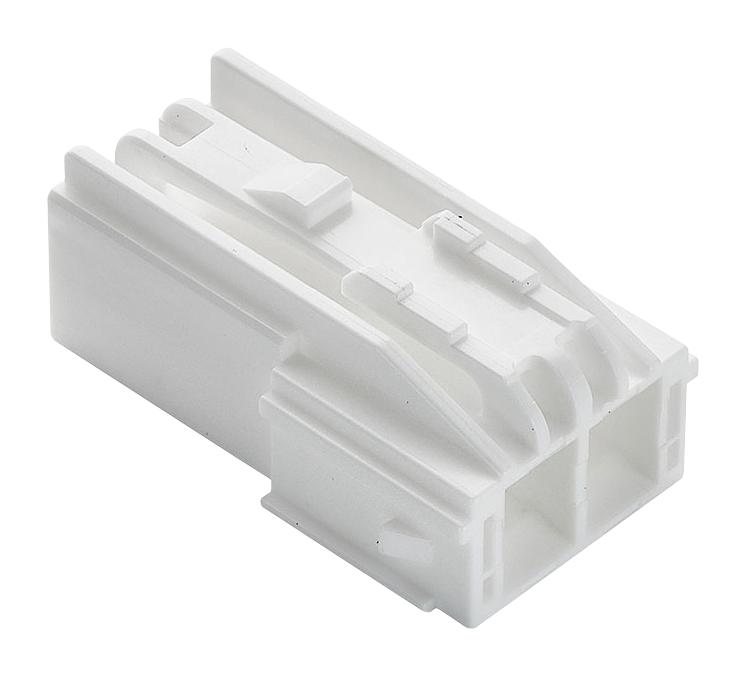

MOLEX 2069972211 Wire-to-Wire Connectors
Glow-wire capable and halogen-free CP-4.5 wire-to-wire connectors feature secure locking with fool-proof keyed, color-coded, and polarized design for easy mating. The wide variety of housing colors facilitates quick identification during assembly and repair. An integrated beam prevents wire snagging, while polarization keys prevent mis-mating and shorts. These connectors provide an audible click, latch protection, and secure terminal retention. Rated for 600V AC/DC and currents from 2.0 to 10.0A, they endure up to 30 mating cycles, operate from -40°C to +120°C, and meet global safety standards including glow-wire compliance. Made of UL94V-0 nylon housing and retainer, they ensure safety and durability in wiring applications.
MOLEX 2069972211 Wire-to-Wire Connectors Specifications:
- Voltage Rating: 600V AC/DC
- Current Rating: 2.0 to 10.0A
- Operating Temperature: -40°C to +120°C
- Material: UL94V-0 nylon housing and retainer
- Number of Mating Cycles: Up to 30
- Locking: Secure, fool-proof keyed, polarized design
- Color Options: Wide variety for quick identification
- Durability: Rated for multiple connect/disconnect cycles
- Glow-wire Capability: Yes
- Halogen-Free: Yes
Buy the Molex Series CP-4.5 Wire-to-Wire Connector: 2069972211
Purchase your Molex Series CP-4.5 wire-to-wire connectors online today to enjoy high-quality, halogen-free, glow-wire capable connections. These connectors feature fool-proof keyed locking, polarized design, and color-coded housing for quick identification during installation. Rated for 600V and currents up to 10A, they operate from -40°C to +120°C, providing long-lasting durability with up to 30 mating cycles. Made of UL94V-0 nylon, they meet global safety standards, making them ideal for professional wiring projects in various industries. Secure your order now for dependable electrical connections.
Order your Molex Series CP-4.5 connector today and ensure reliable, safe electrical connections with its secure locking and global safety compliance.
Frequently Asked Questions
Where can I buy MOLEX 2069972211?
You can click on the BUY or RFQ button to purchase 2069972211 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069972211?
You can download the 2069972211 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069972211?
MOLEX
