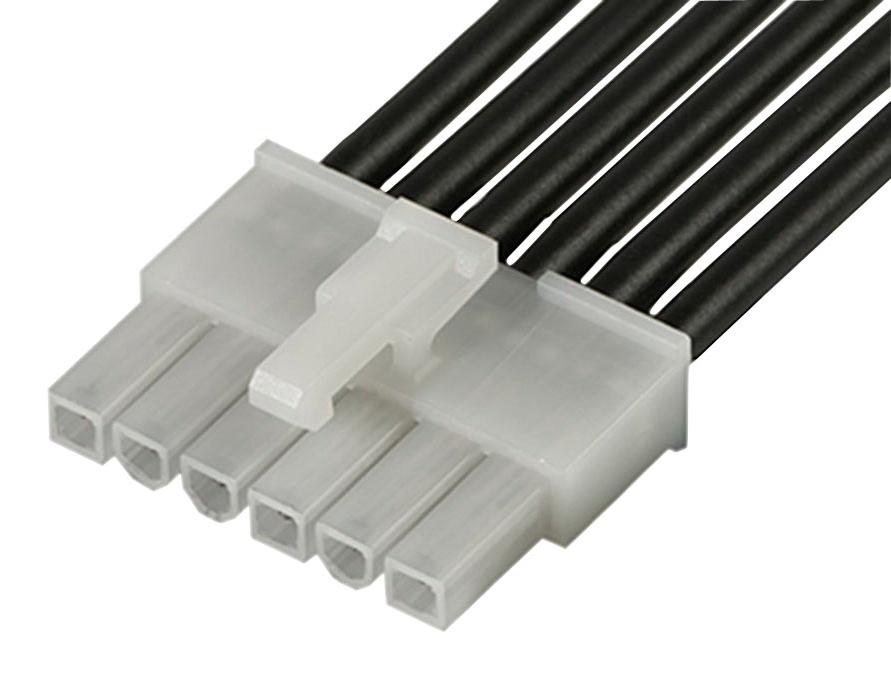

MOLEX 2153232062 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2062 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power applications in wire-to-wire configurations. It boasts a single-row design, a black nylon resin housing, and robust plating on both the mating and termination interfaces. This assembly is ideal for applications requiring secure and reliable power transmission, commonly found in automotive, industrial equipment, and consumer electronics.
Authorized Distributors
Source:Mouser Electronics
Part No:215323-2062
Stock:0
Inv Date:05-30-2026
Price: Unit price: $5.93
Buy/RFQ:
Source:RS Americas, Inc
Part No:215323-2062
Stock:0
Inv Date:05-29-2026
Price: Unit price: $6.05
Buy/RFQ:
MOLEX 2153232062 Mini-Fit Jr. Cable Assembly Specifications:
- application: Power, Wire-to-Wire Assembly
- configuration: Single Ended
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 44.062/g
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264597826
