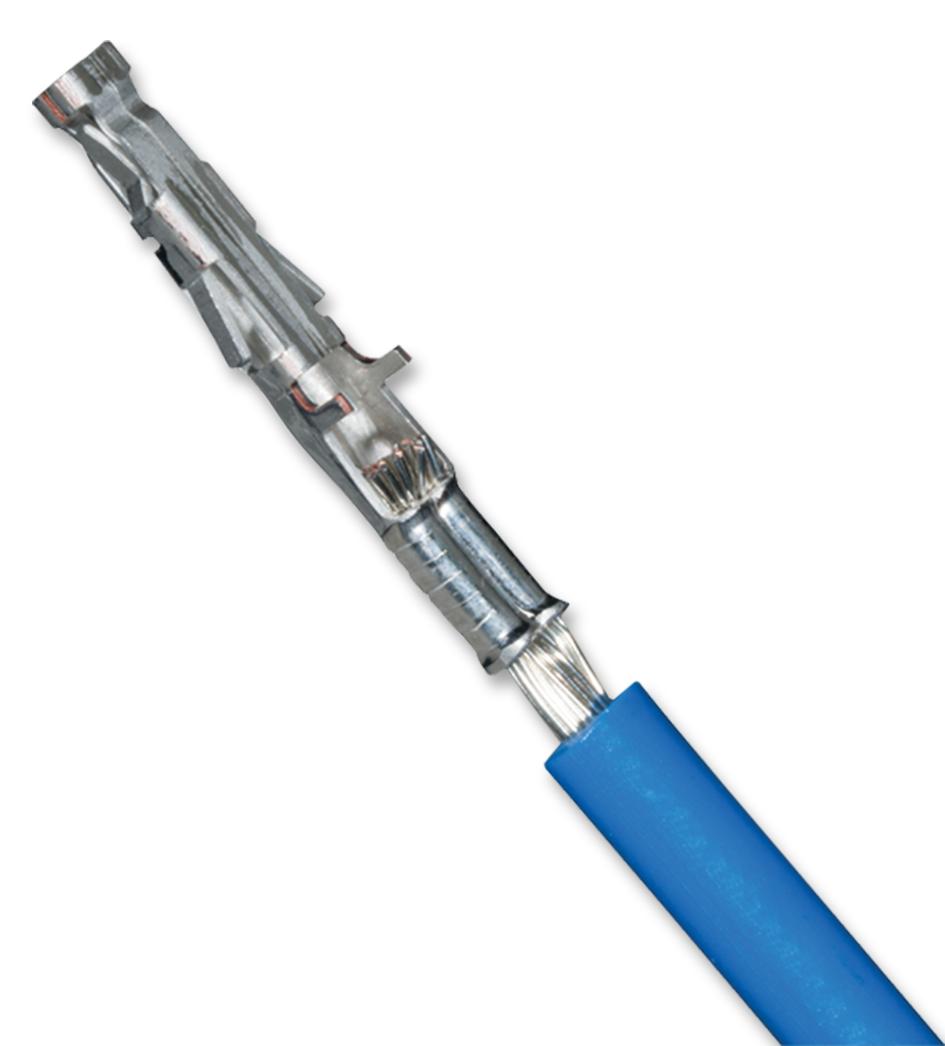

MOLEX 1720630312 Mega-Fit Female Crimp Terminal
The MOLEX 172063-0312 is a Mega-Fit female crimp terminal engineered for robust power connections. Constructed with a copper alloy body and gold plating on the mating side and nickel on the termination side, this terminal ensures reliable electrical contact and corrosion resistance. Designed for 12 AWG wire, it supports a maximum current of 23.0A and a voltage of 600V, making it suitable for a wide range of power distribution applications in automotive, industrial, and consumer electronics. It is RoHS compliant and packaged on a reel for automated assembly processes.
MOLEX 1720630312 Mega-Fit Female Crimp Terminal Specifications:
- Part Number: 1720630312
- Status: Active
- Overview: Mega-Fit Power Connectors
- Description: Mega-Fit Female Crimp Terminal, 12 AWG 15µ" Gold (Au) Plating, Reel
- Product Family: Crimp Terminals
- Series: 172063
- Application: Power
- Crimp Quality Equipment: Yes
- Gender: Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Nickel
- Net Weight: 0.340/g
- Packaging Type: Reel
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.270µm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 4.35mm (0.171")
- Wire Size AWG: 12
- Wire Size mm²: N/A
- Current - Maximum per Contact: 23.0A
- Voltage - Maximum: 600V
- Lead-free Process Capability: N/A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant
- UPC: 887191474595
- Use With: Mega-Fit CrimpHousing 171692, 170001
