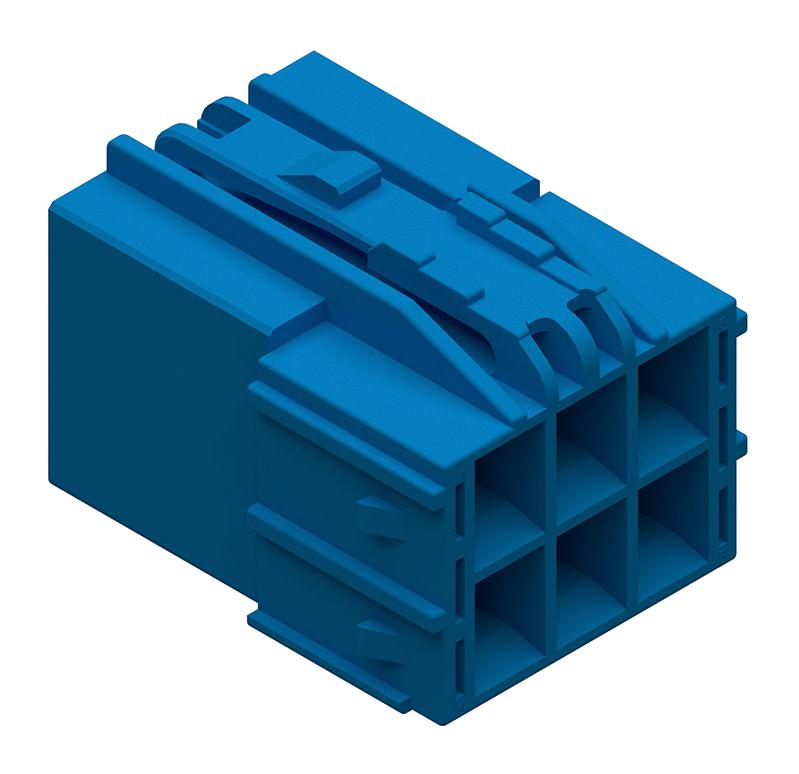

MOLEX 2069972601 Wire-to-Wire Connector
The CP-4.5 wire-to-wire connectors are glow-wire capable, halogen-free, and designed for reliable locking with fool-proof keyed, color-coded, and polarized features to enhance assembly and reduce operational costs across consumer, industrial, and power applications. They come in various housing colors for quick identification. The connectors include a positive inertia lock providing an audible click for mating confirmation, latch protection, and secure terminal retention. Rated for up to 600V AC/DC and currents from 2.0 to 10.0A, with a lifespan of up to 30 mating cycles, they're constructed with UL94V-0 nylon housing for effective operation from -40°C to +120°C and meet environmental safety standards.
MOLEX 2069972601 Wire-to-Wire Connector Specifications:
- Number of Circuits: 6
- Pitch: 4.50mm
- Color: Blue
- Housing Material: UL94V-0 Nylon
- Operating Temperature Range: -40°C to +120°C
- Voltage Rating: Up to 600V AC/DC
- Current Rating: 2.0 to 10.0A
- Locking Mechanism: Positive inertia lock with audible click
- Mating Cycles: Up to 30
- Housing Features: Fool-proof keyed, color-coded, polarized
- Construction: Integral beam supports to prevent wire snagging
Buy the Molex Series CP-4.5 Wire-to-Wire Connector: 2069972601
Enhance your electrical assemblies with the Molex Series CP-4.5 wire-to-wire connector. These reliable and halogen-free connectors are glow-wire capable, featuring fool-proof keyed, color-coded, and polarized designs for quick, error-free mating. Rated up to 600V and 10A, they deliver robust performance across a broad temperature range from -40°C to +120°C. With a lifespan of up to 30 mating cycles, they are ideal for industrial, consumer, and power projects. Constructed from UL94V-0 nylon, these connectors meet strict environmental safety standards, ensuring durability and safety in demanding conditions.
Order your Molex Series CP-4.5 2069972601 today and ensure reliable, environmentally safe connections for your industrial and consumer projects.
Frequently Asked Questions
Where can I buy MOLEX 2069972601?
You can click on the BUY or RFQ button to purchase 2069972601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069972601?
You can download the 2069972601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069972601?
MOLEX
