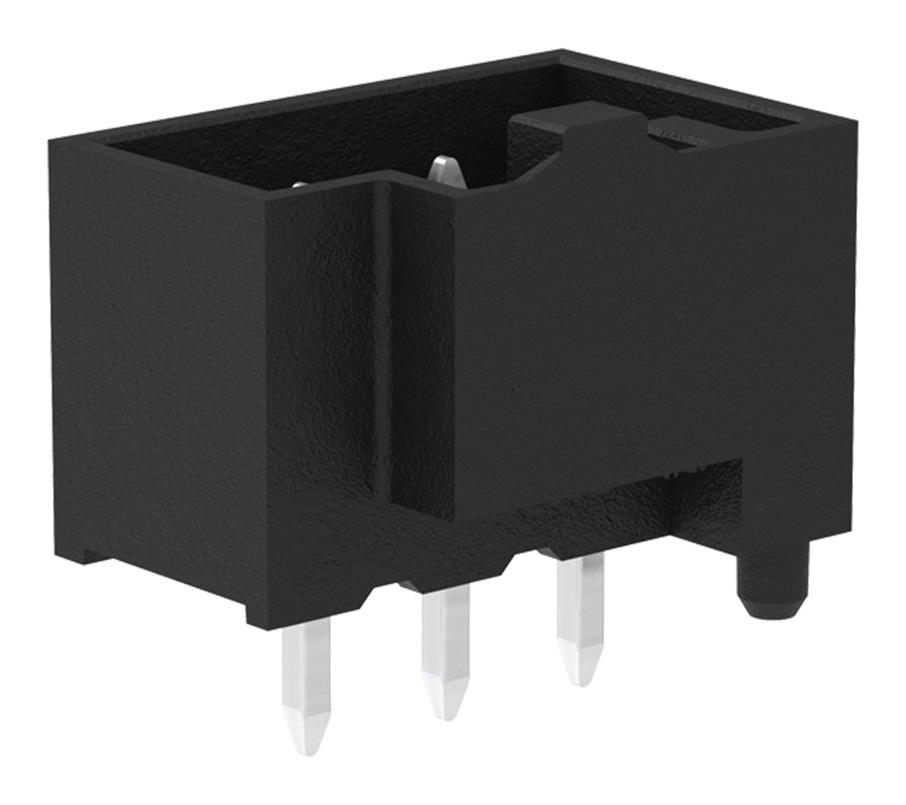

MOLEX 2092080004 Wire-to-Board Connector
The L1NK connector system is a versatile wire-to-board connector with a 3mm pitch, delivering up to 11.0A of current. It features a shrouded header with pin protection, a crush peg for PCB stability, and supports a maximum voltage of 250V. Suitable for various industries including consumer electronics, telecommunications, and automotive, this connector offers easy assembly, durable performance with 25 connection cycles, and a contact resistance of 10 milliohms. The compact design and reliable contact mechanism make it ideal for space-constrained applications requiring secure, high-current connections.
MOLEX 2092080004 Wire-to-Board Connector Specifications:
- Current - Maximum per Contact: 11.0A
- Voltage - Maximum: 250V AC/DC
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Black
- Contact Resistance: 10 milliohms
- Temperature Range - Operating: -40° to +105°C
- Number of Circuits: 4
- Circuit Max: 4
- Pitch - Mating Interface: 3.00mm
- Orientation: Vertical
- PCB Thickness - Recommended: 1.57mm
- Lock to Mating Part: Yes
- Shrouded: Yes
- Net Weight: 0.572 grams
- Packaging Type: Tray
- Through Hole: Yes
- Locking Feature: Crush peg for stability
- Application: Wire-to-board, high-current, durable connection in industrial and automotive applications
Buy the Molex 2092080004 – Reliable High-Current Connector for Industrial Applications
Purchase the Molex 2092080004 wire-to-board connector today for your industrial, automotive, or consumer electronics projects. Designed with a 3mm pitch, it supports up to 11.0A current and features a durable, shrouded header that provides pin protection and PCB stability. Crafted from high-quality materials, it ensures reliable performance across a wide temperature range of -40°C to +105°C. Easy to assemble and with a maximum voltage of 250V, this connector guarantees secure, high-current connections in space-constrained and demanding applications. Secure your supply chain now!
Get Molex 2092080004 today—built for high-current, secure wire-to-board connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2092080004?
You can click on the BUY or RFQ button to purchase 2092080004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2092080004?
You can download the 2092080004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2092080004?
MOLEX
