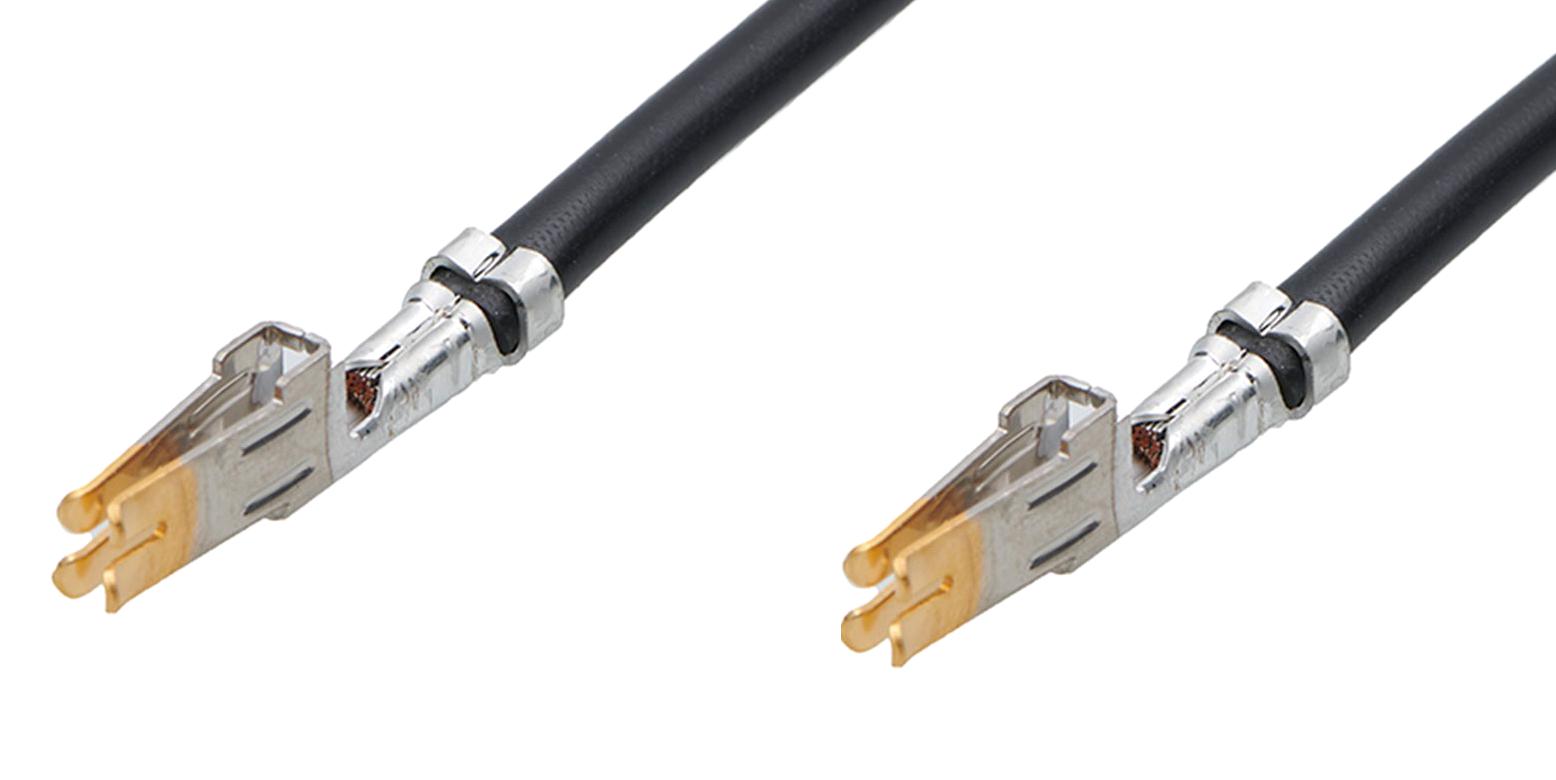

MOLEX 2174801223 Mini-Fit Sr. Female-to-Female
The MOLEX 217480-1223 is a pre-crimped lead cable assembly designed for power applications, wire-to-board connections, and wire-to-wire assemblies. It utilizes Mini-Fit Sr. connectors and features gold plating on the mating side and tin plating on the termination side, ensuring excellent conductivity and durability. The assembly is RoHS compliant and suitable for various industrial and commercial applications requiring robust and reliable power transmission.
MOLEX 2174801223 Mini-Fit Sr. Female-to-Female Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: Mini-Fit Sr.
- circuits_loaded: 1
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold (0.762µm min)
- plating_termination: Tin (2.540µm min)
- material_resin: PVC
- net_weight_g: 28.785
- number_of_rows: 1
- packaging_type: Bag
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max_mm: 6.60
- wire_size_awg: 8
- wire_cable_type: UL 10669
- current_max_per_contact_a: 50.0
- upc: 195842120853
- cable_length_mm: 225.00
- sales_drawing_number: 2174801222-000
