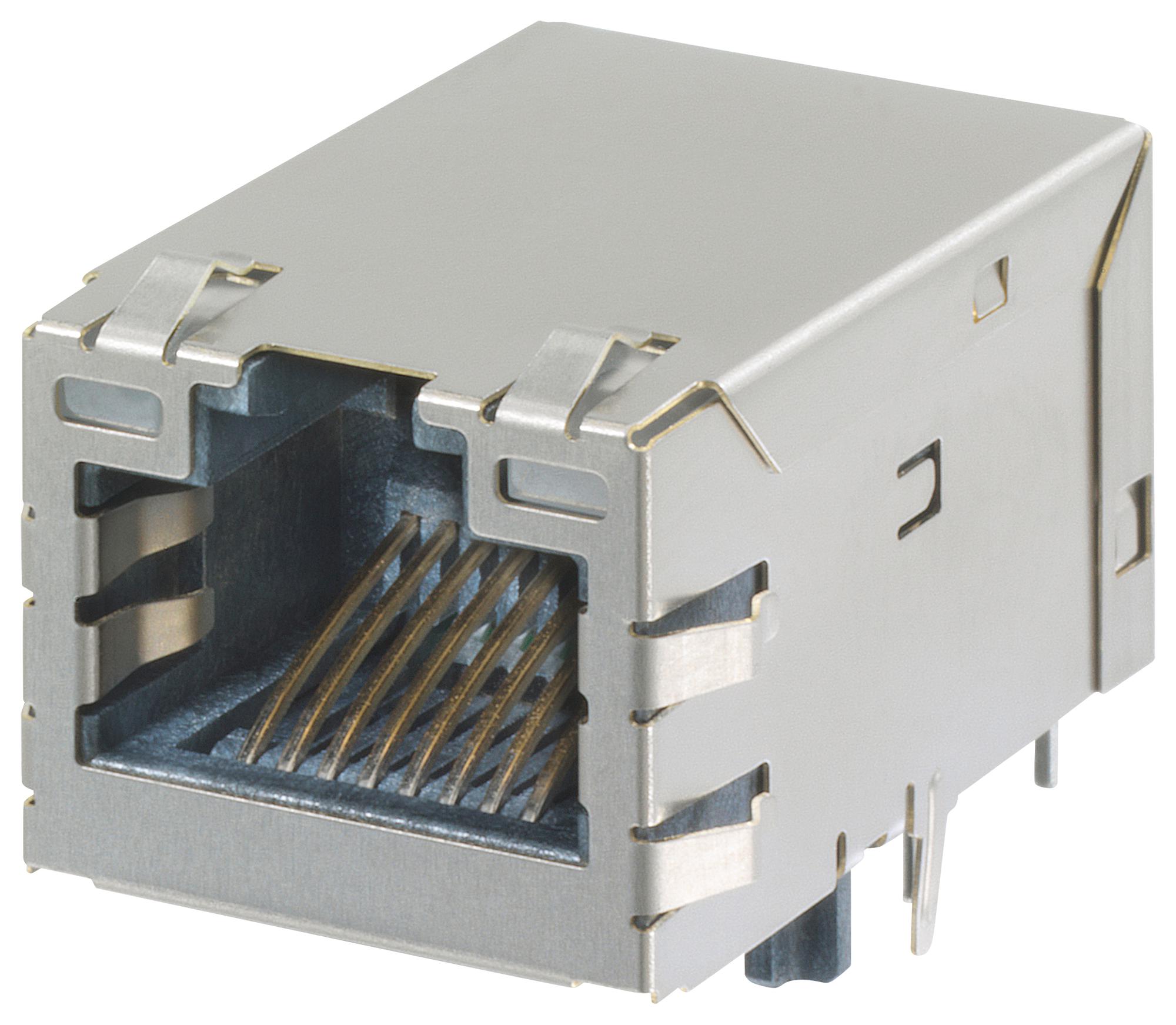

MOLEX 936283721 Ethernet Jack
The MXMag Gigabit RJ45 Magnetic Jack is a compact, shielded Ethernet connector designed for high-performance networking. Featuring 8 core modular design, it supports 1Gbps data transmission and Power over Ethernet (PoE) capabilities. With a depth of 25.40mm and a right-angle, inverted profile, it is suitable for dense panel mounting. The connector includes green LEDs for link/activity indication, gold-plated contacts, and a robust metal housing with shield tabs. Its durability supports up to 2500 mating cycles, ensuring long-term reliability in industrial and networking applications.
MOLEX 936283721 Ethernet Jack Specifications:
- Product Family: Modular Jacks/Plugs
- Component Type: PCB Jack
- Depth: 25.40mm
- Performance Category: Power over Ethernet (PoE) Support: Non-PoE
- Color - Resin: Black
- Durability: 2500 mating cycles
- Inverted / Top Latch: Yes
- Jack Height: 14.10mm
- Lightpipes/LEDs: Green-Green
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Orientation: Right Angle (Side Entry)
- PCB Locator: Yes
- PCB Retention: Yes
- Recommended PCB Thickness: 1.57mm
- Packaging Type: Tray
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: 0°C to +70°C
- Termination Interface: Style: Through Hole
- Wire/Cable Type: N/A
- Current - Maximum per Contact: 0.5A
- Grounding to PCB: Yes
- Grounding to Panel: Yes
- Shielded: Yes
- Voltage - Maximum: 125V
- RoHS Compliance: EU RoHS, China RoHS, Halogen-Free
- Environmental Conditions: ECM: Not Reviewed, REACH SVHC: Not Reviewed
- Mates With: IEC 60603 / TIA-1096-A
Buy the Buy Molex Ethernet Magnetic Jack Part Number 936283721 Online
Place your order for the Molex Ethernet Magnetic Jack today to ensure reliable high-speed network connectivity. Featuring a compact, shielded design with green LEDs for easy monitoring, it supports up to 1Gbps data transfer and Power over Ethernet (PoE). Built with durable materials, it withstands up to 2500 mating cycles, making it ideal for industrial and networking environments. Easy to install with through hole mounting, this connector provides robust, long-lasting performance for high-density networking setups. Order now for fast delivery and top-quality networking solutions.
Get Molex 936283721 today—designed for high-speed data transfer with shielded contacts and long-lasting durability in industrial Ethernet systems.
