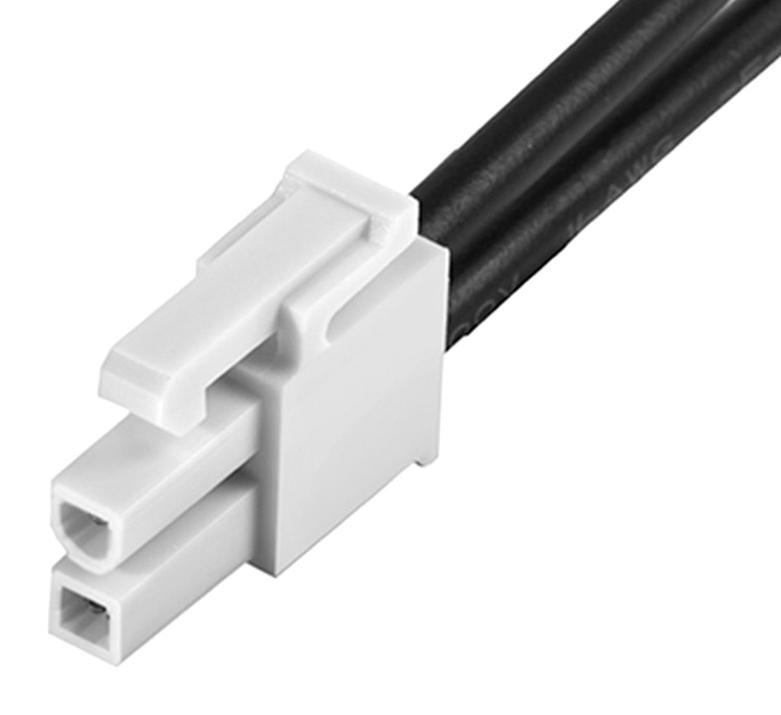

MOLEX 2153271102 Mini-Fit Jr. Power Connector
The Mini-Fit Jr. male-to-male cable assembly features a dual-row configuration with a 300mm length, designed for power and signal connections. It uses tin-plated brass contacts, nylon insulation, and is suitable for high-current applications up to 9A at 600V. The assembly supports crimp or compression termination styles, with wire sizes from 1.80mm to 3.10mm and wire gauge ranging from 16 AWG. This black, discrete wire connector is compatible with Mini-Fit Jr. receptacle housing and TPA modules, providing reliable power distribution in compact electronic systems.
MOLEX 2153271102 Mini-Fit Jr. Power Connector Specifications:
- Cable Length: 300.00mm
- Circuits: 10
- Color - Resin: Black
- Gender: Male-Male
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Terminations: Crimp or Compression
- Termination Interface: Style: Crimp or Compression
- Operating Temperature Range: Not specified
- Certification: UL 1015
- Number of Rows: 2
- Pitch - Mating Interface: 2.540mm
- RoHS Compliance: Yes
- Halogen-Free: No
- Status: Active
Buy the Molex Series Mini-Fit Jr. Power Connector: 2153271102
Enhance your electrical installations with the high-quality Molex Mini-Fit Jr. Power Connector. This durable male-to-male cable assembly, measuring 300mm, is ideal for power and signal connections in electronic systems. Featuring tin-plated brass contacts for excellent conductivity, nylon insulation, and supporting up to 9A at 600V, it guarantees reliable performance. The assembly’s compact design, crimp or compression termination options, and compatibility with various Mini-Fit Jr. housings make it perfect for demanding industrial and consumer applications. Buy online now for trusted quality and easy installation.
Order your Molex Series Mini-Fit Jr. Power Connector today and ensure reliable power distribution in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2153271102?
You can click on the BUY or RFQ button to purchase 2153271102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153271102?
You can download the 2153271102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153271102?
MOLEX
