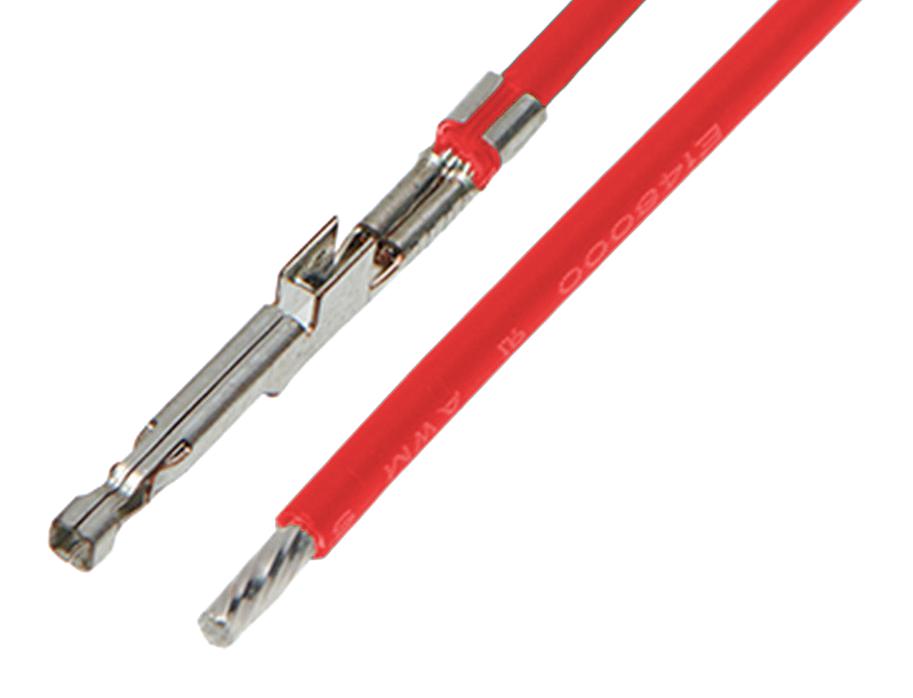

MOLEX 2174712113 Pre-Crimped Lead Assembly
Molex's pre-crimped leads offer a reliable, cost-effective solution for prototyping, pre-production, and mass manufacturing applications. The 217471 series features ultra-fit female-to-pigtail cable assemblies with a 225mm length, red resin, and high-conductivity copper with tin plating. Designed for versatility, these assemblies support up to 600V AC/DC and 12A per contact. Made with 18 AWG wire conforming to UL 1061 standards, they are ideal for quick prototyping, ensuring compatibility with various Molex connector families. Fully tested for quality and quick deployment, they streamline product development and reduce time-to-market for engineers and manufacturers.
MOLEX 2174712113 Pre-Crimped Lead Assembly Specifications:
- Cable Length: 225.00mm
- Wire Size: 18 AWG
- Rated Voltage: 600V AC/DC
- Maximum Current: 12.0A per contact
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Tin
- Resin Color: Red
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 2.03-2.39mm
- Packaging Type: Bag
- Application: Power, Wire-to-Board
- Assembly Configuration: Female-to-Pigtail
- Status: Active
- Certifications: UL 1061
- RoHS Compliant: Yes
- Halogen-Free: No
Buy the Buy Molex Ultra-Fit Female-to-Pigtail Part Number 2174712113 Online
Order Molex pre-crimped female-to-pigtail assemblies, 225mm length, rated for 600V and 12A, with 18 AWG wire and tin plating. These cost-effective, reliable cables are designed for quick installation and compatibility with various connector families, ideal for prototyping, pre-production, and mass manufacturing. Fully tested for quality assurance, they reduce time-to-market for engineers and manufacturers seeking durable, versatile power and signal connections. Secure your supply of high-performance Molex connector solutions online today.
Buy Molex 2174712113 now and experience reliable, high-quality pre-crimped leads perfect for rapid prototyping and mass production.
