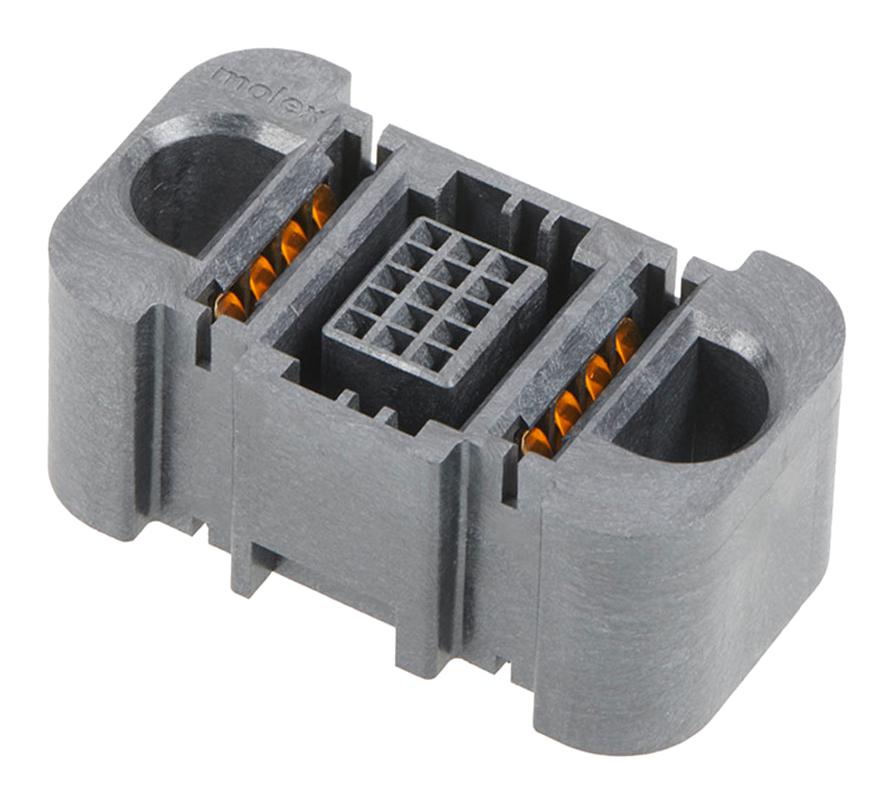

MOLEX 2141140002 Power Connector
Extreme Guardian power connectors are compact, high-current connectors designed for power and signal applications in telecommunications, data centers, and industrial environments. Featuring configurable hybrid designs with up to 80A per blade and rated for operating temperatures up to 125°C, these connectors provide reliable performance with minimal voltage drop. They include guide receivers for precise mating, PCB pegs for secure attachment, and are constructed with high-quality copper, gold-plated contacts, and a durable high-performance LCP housing. UL and CSA certified, they support at least 200 mating cycles for enhanced longevity.
MOLEX 2141140002 Power Connector Specifications:
- Current Rating: Up to 80A per blade
- Voltage Rating: 125V
- Operating Temperature Range: -40°C to +125°C
- Material: Copper alloy contacts, high-performance liquid crystal polymer housing
- Plating: Gold on contacts, tin-solder tails, nickel underplating
- Mating Cycles: Minimum 200
- Pin Configuration: 1 power circuit, 15 signal circuits
- Pitch: 2.00mm
- Color: Black
- Durability: High-temperature rated for various industrial environments
- Guide Receivers: Present for precise alignment
- PCB Thickness: 1.58mm
- Net Weight: 9.482 grams
- Labeling: UL and CSA certified
- Connector Type: Vertical receptacle assembly for PCB mounting
- Self-Alignment: Yes, with guide receivers and PCB pegs
- Housing Material: Liquid Crystal Polymer (LCP)
Buy the Buy Molex Extreme Guardian Part Number 2141140002 Online
Purchase the Molex 2141140002 Power Connector online today for your industrial automation, data center, or telecommunication project. This high-current connector offers reliable, safe, and efficient power and signal transmission with a compact design, gold-plated contacts, and a rated operating temperature up to 125°C. Its durable construction ensures at least 200 mating cycles, making it ideal for demanding environments. Easy to install with guide receivers and PCB pegs, this connector delivers high-performance power connectivity for various high-voltage and industrial applications.
Order your Molex 2141140002 Extreme Guardian power connector today and experience high-current reliability in compact, industrial-grade connectors.
Frequently Asked Questions
Where can I buy MOLEX 2141140002?
You can click on the BUY or RFQ button to purchase 2141140002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2141140002?
You can download the 2141140002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2141140002?
MOLEX
