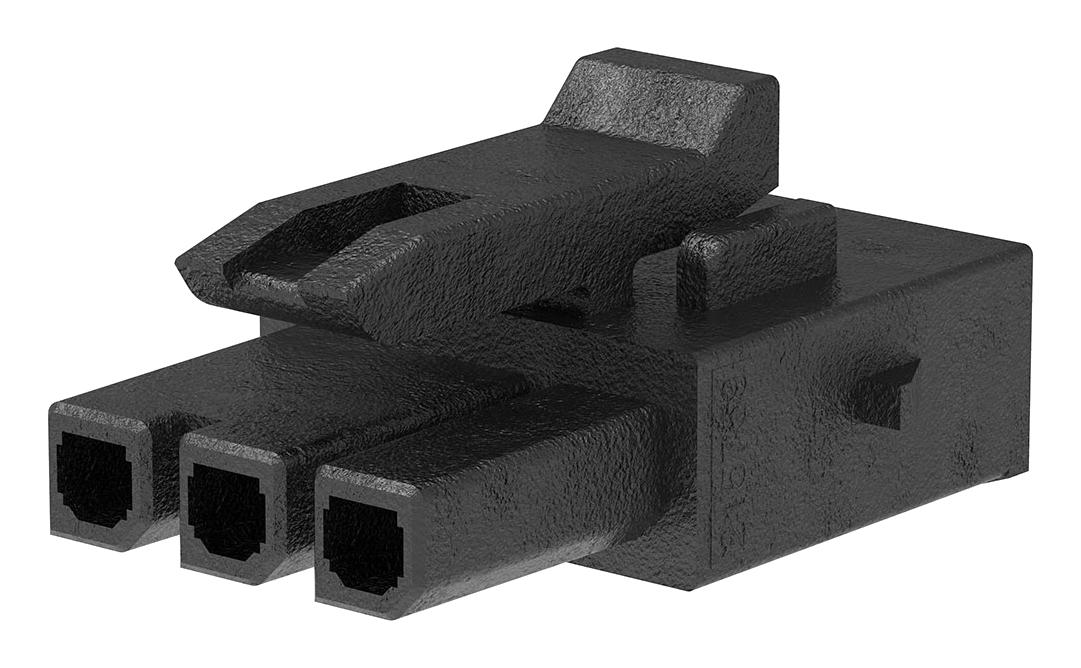

MOLEX 2157591003 Micro-Fit+ Receptacle Housing
The MOLEX 2157591003 Micro-Fit+ Receptacle Housing is a robust connector solution for power and wire-to-board applications. This single-row housing accommodates 3 circuits and is constructed from durable nylon resin, offering excellent insulation and mechanical strength. It's glow-wire capable, meeting stringent safety standards. The housing is polarized and keyed to ensure proper mating with compatible Micro-Fit+ headers, simplifying assembly and preventing misconnections. Its compact design and reliable performance make it suitable for a wide range of industrial and consumer electronics applications.
MOLEX 2157591003 Micro-Fit+ Receptacle Housing Specifications:
- Product Family: Crimp Housings
- Series: 215759
- Application: Power, Wire-to-Board
- Overview: Micro-Fit+ Connector System
- UPC: 193264919796
- Circuits (maximum): 3
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 0.455/g
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 3.00mm
- Pitch - Termination Interface: 3.00mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40° to +105°C
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Mates With: Micro-Fit+ Headers 216571, 215760
