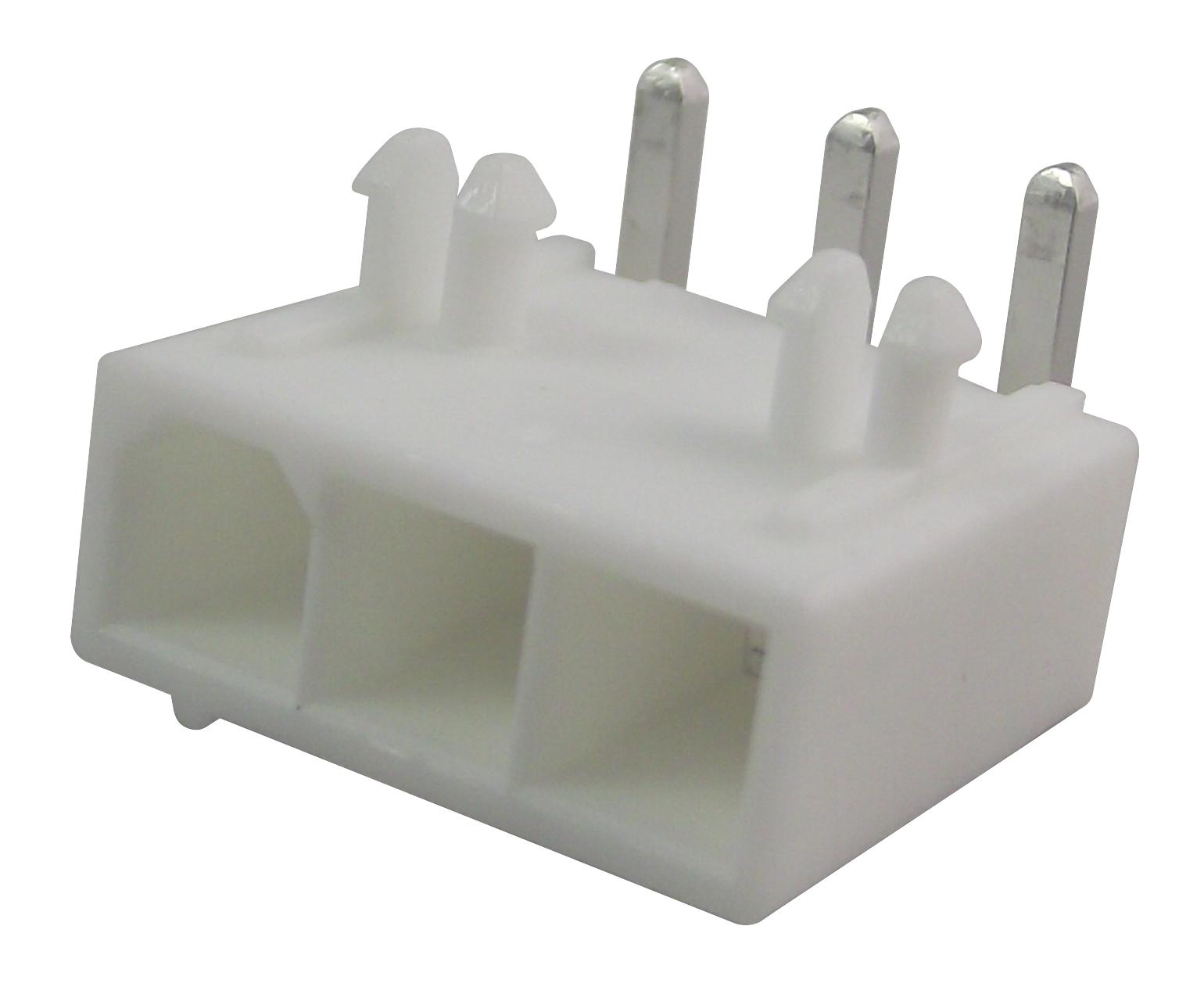

MOLEX 39303036 Power Connector
The Mini-Fit Jr. Power Connector is a reliable, high-current header designed for power applications. Featuring a single row, right-angle orientation with snap-in plastic locking pegs, it supports 3 circuits and is made from PA polyamide nylon 6/6 with UL 94V-0 flame rating. It offers a maximum current of 13A per circuit, operates within -40°C to +105°C, and includes tin-plated brass contacts. Ideal for power or wire-to-board connections in industrial and consumer electronics, it ensures secure mating, durability, and compliance with RoHS and UL standards.
MOLEX 39303036 Power Connector Specifications:
- Current: 13A max. per circuit when mated
- Voltage: 600V maximum
- Number of Circuits: 3
- Orientation: Right Angle
- Material - Metal: Brass
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon (PA Polyamide 6/6)
- Flammability: UL 94V-0
- Temperature Range: -40°C to +105°C
- Pin Pitch - Mating Interface: 4.20mm
- PCB Thickness - Recommended: Not specified, compatible with standard PCB
- Durability: Up to 30 mating cycles
- Certification: UL, CSA, RoHS compliant
- Process Temperature Max: 240°C (wave soldering)
- Connection Style: Through Hole
- Polarized to PCB: Yes
- Guide to Mating Part: 39-01-4031 Receptacle
- Packaging: Bag
Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 0039303036 Online
Enhance your power distribution with the Mini-Fit Jr. Power Connector, a guaranteed durable, reliable, and RoHS-compliant component suitable for industrial and consumer electronics. Featuring a 3-circuit, right-angle design with snap-in locks, it supports up to 13A per circuit and operates efficiently within -40°C to +105°C. Its high-quality materials include brass contacts with matte tin plating and nylon insulation. Purchase this versatile, high-performance connector online today for secure, efficient, and compliant power connections.
Buy Molex 0039303036 now and experience unmatched reliability and power connection efficiency for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 39303036?
You can click on the BUY or RFQ button to purchase 39303036 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39303036?
You can download the 39303036 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39303036?
MOLEX
