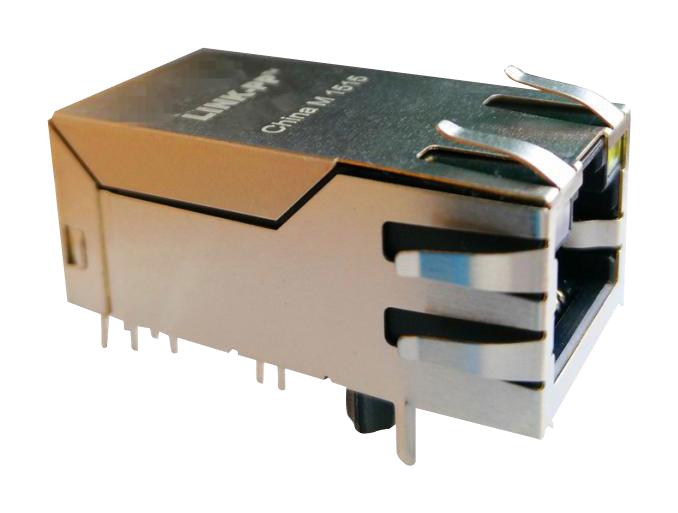

MOLEX 857891001 Ethernet Jack
The Magnetic Jack, Modular Jack 8/8 RJ45, is a high-performance Gigabit Ethernet connector with PoE+ support, designed for modular networking applications. It features a 1x1 port configuration, durable construction with 750 mating cycles, and LED indicators for status. Made with brass and phosphor bronze, it offers reliable gold-plated contacts and shielded design for enhanced EMI protection. The jack supports operating temperatures from 0°C to +70°C, with a compact 13.87mm height, ensuring seamless installation and robust network connectivity in industrial and commercial settings.
MOLEX 857891001 Ethernet Jack Specifications:
- Series: 85789 EU RoHS
- Product Family: Modular Jacks/Plugs
- Component Type: PCB Jack
- Magnetic: Yes, with Exemption 7(c)-I
- Performance Category: 5, 5e
- Power over Ethernet: PoE+
- Certifications: UL E177474, EU ELV
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating: Mating Gold, Tin Termination
- Jack Height: 13.87mm
- Orientation: Right Angle (Side Entry)
- Contact Arrangement: 8/8
- Port Configuration: 1x1
- Pitch - Mating Interface: 1.02mm
- Voltage - Max: 57V
- Current - Max per Contact: 1.0A
- Temperature Range: 0°C to +70°C
- Termination Interface: Through Hole
- Shielded: Yes
- Grounding: To PCB and Panel
- Packaging: Tray
- Dimensions and Plating: 0.381μm minimum mating plating, 1.270mm termination plating
Buy the Molex Series 85789 RJ45 Ethernet Jack: 0857891001
Enhance your network setup with the Molex Ethernet Jack supporting Gigabit speeds and PoE+. Its shielded design, gold-plated contacts, and robust construction ensure reliable performance in industrial and commercial environments. This 8/8 port modular jack offers easy side-entry orientation, is UL and RoHS certified, and is ideal for applications requiring high durability with 750 mating cycles. Compatible with standard PCB mounting, it ensures stable, interference-free data transmission, making it a smart choice for your networking infrastructure.
Get Molex 0857891001 today—built for precision and long-lasting durability in high-speed Ethernet connections.
Frequently Asked Questions
Where can I buy MOLEX 857891001?
You can click on the BUY or RFQ button to purchase 857891001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 857891001?
You can download the 857891001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 857891001?
MOLEX
