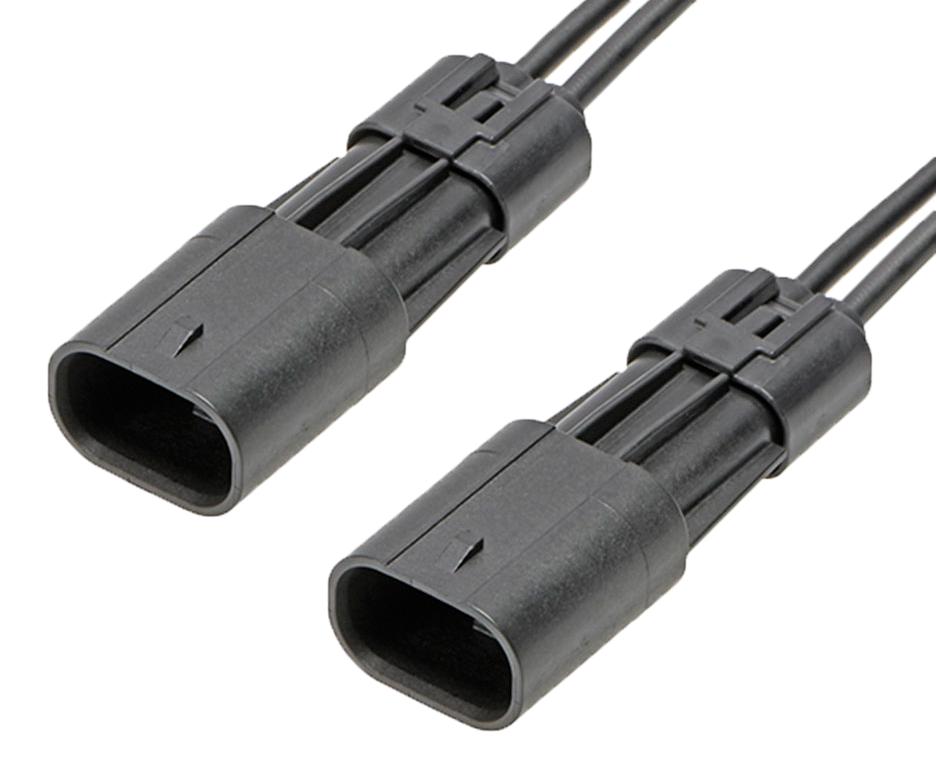

MOLEX 2166221023 Sealed Power Connector
The Squba 3.60mm pitch sealed wire-to-wire connector system offers a patent-pending design with IP67 NEMA rating, supporting up to 14.0A at 600V. Made with a nylon housing and copper alloy contacts, it ensures reliable power connections in space-constrained environments across industrial, commercial, and automotive sectors. Features include a wraparound insulation crimp for sealing, a primary lock with 40N terminal retention for vibration resistance, and protective seal caps. Designed for easy assembly with proper alignment and UL, CSA certification, the connector withstands up to 25 insertion cycles, making it ideal for rugged applications.
MOLEX 2166221023 Sealed Power Connector Specifications:
- Pitch: 3.60mm
- Number of Circuits: 2
- Cable Length: 600.00mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Seal Rating: IP67 NEMA rating
- Wire Insulation Diameter: 1.90mm-2.40mm
- Wire Size AWG: 16
- Total Insertion Cycles: Up to 25
- Certifications: UL, CSA
- Housing Color: Black
- Lock Force: 40N terminal retention
Buy the Buy Molex Squba 3.6 Connector Part Number 2166221023 Online
Order the Molex 2166221023 sealed power connector online today and enjoy reliable, high-quality power transmission in space-constrained applications. Designed with a robust nylon housing and copper alloy contacts, it supports up to 14A at 600V, making it ideal for industrial, commercial, and automotive environments. The IP67 sealing rating ensures resistance to dust and water, while the primary lock and seal caps provide stable, vibration-resistant connections. Easy to install with proper alignment, it complies with UL and CSA standards for safety and performance.
Buy Molex 2166221023 now and experience unmatched reliability and performance in rugged sealed power connections for industrial and automotive use.
Frequently Asked Questions
Where can I buy MOLEX 2166221023?
You can click on the BUY or RFQ button to purchase 2166221023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2166221023?
You can download the 2166221023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2166221023?
MOLEX
