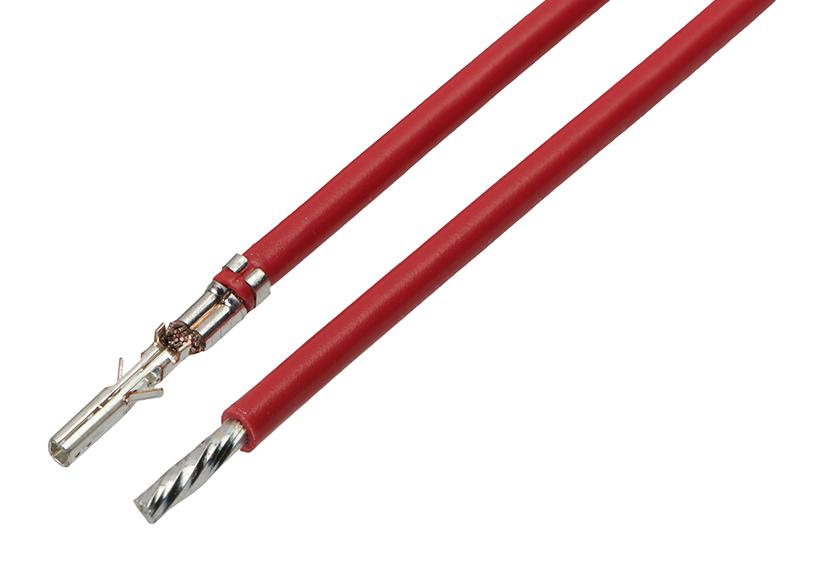

MOLEX 2147612122 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 2147612122 is a pre-crimped lead connector within the Micro-Fit 3.0 family. This connector offers a convenient, ready-to-use solution for connecting wires to boards or other wires. It is tin-plated for reliable electrical contact and features a red resin color for easy identification. Designed for power applications, this connector is RoHS compliant and contributes to environmentally responsible designs. It is ideal for applications requiring a secure and efficient connection with a 18 AWG wire size and a maximum current rating of 8.5A per contact.
MOLEX 2147612122 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Tin (Sn) Plated, 150.00mm Length, 18 AWG, Red
- product_family: Cable Assemblies
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Micro-Fit 3.0
- crimp_terminals: Micro-Fit 3.0
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- current_maximum_per_contact: 8.5A
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- net_weight: 1.786/g
- upc: 193264574537
- reach_svhc: Not Contained
- halogen_free: Yes
