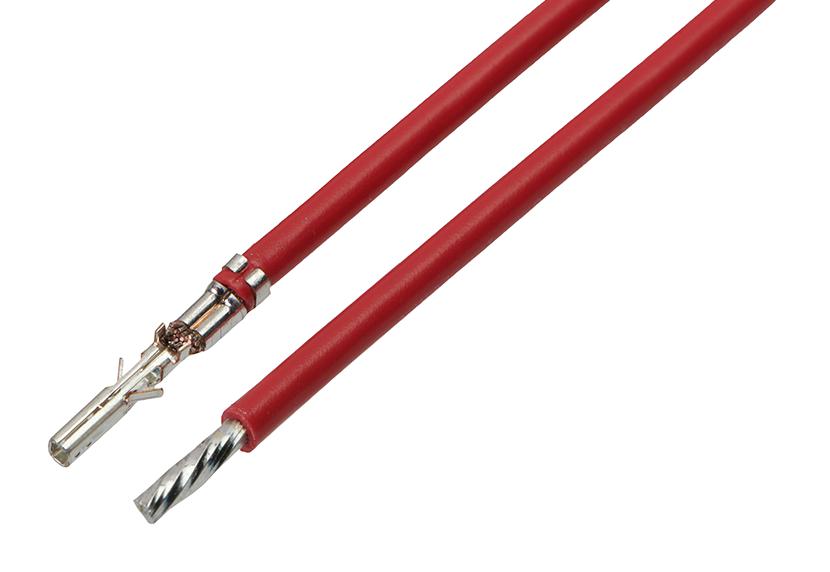

MOLEX 2147612223 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 214761-2223 is a pre-crimped lead assembly designed for secure and efficient electrical connections. This Micro-Fit 3.0 female-to-pigtail connector provides a convenient, ready-to-use solution for wire-to-board and wire-to-wire applications. The gold plating on the contacts ensures excellent conductivity and corrosion resistance, while the red resin insulation provides durability and insulation. It is RoHS compliant and suitable for various power applications.
MOLEX 2147612223 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- crimp_terminals: Micro-Fit 3.0 Crimp Terminals
- cable_length: 225.00mm
- wire_size_awg: 18
- color: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- plating_mating_min: 0.762µm
- plating_termination_min: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- circuits_loaded: 1
- current_maximum_per_contact: 8.5A
- net_weight: 2.596/g
- upc: 193264574698
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- sales_drawing: 2147611221-000
