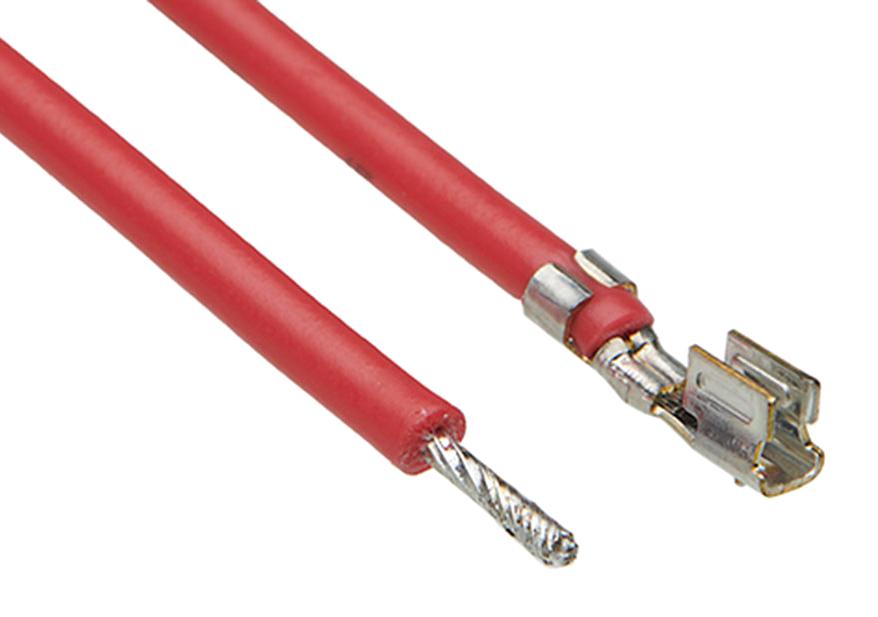

MOLEX 2175112111 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2111 is a pre-crimped lead assembly within the L1NK 250 series. This component provides a convenient, ready-to-use connection solution, eliminating the need for on-site crimping. It's designed for applications requiring a female-to-pigtail connection, offering a secure and reliable electrical interface. The tin plating ensures excellent conductivity and corrosion resistance, while the PVC resin material provides insulation and durability. Ideal for industrial automation, power distribution, and other applications demanding robust and pre-terminated connections.
MOLEX 2175112111 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 75.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 0.468/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119703
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2175112111-000
Buy the 217511-2111 MOLEX L1NK 250 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217511-2111 L1NK 250 Pre-Crimped Lead securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2175112111?
You can click on the BUY or RFQ button to purchase 2175112111 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175112111?
You can download the 2175112111 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175112111?
MOLEX
