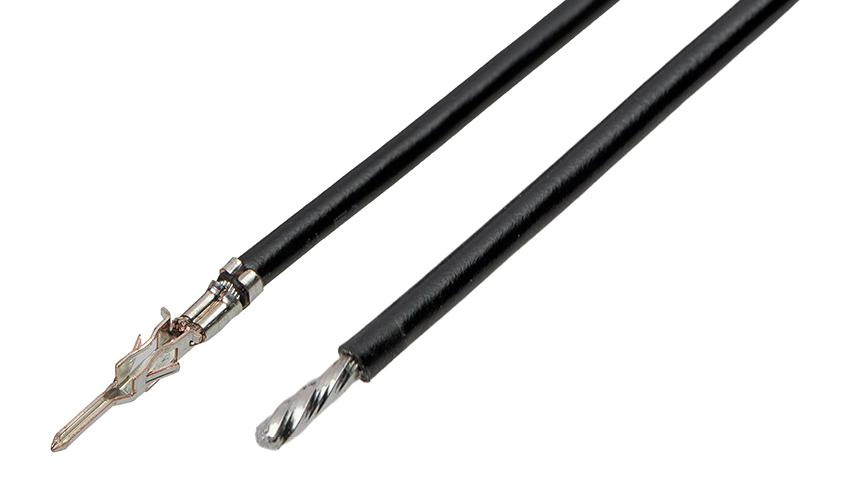

MOLEX 2147631102 Micro-Fit 3.0 Lead
The MOLEX 2147631102 is a pre-crimped lead assembly designed for use with Micro-Fit 3.0 connectors. This lead provides a convenient, ready-to-use connection solution for power and wire-to-wire applications. It features a tin plating for enhanced conductivity and corrosion resistance, a 150mm length for flexibility, and a 22 AWG wire gauge suitable for various current-carrying requirements. The black color provides a clean and professional appearance. This component is ideal for applications requiring a reliable and efficient electrical connection.
MOLEX 2147631102 Micro-Fit 3.0 Lead Specifications:
- Part Number: 2147631102
- Status: Active
- Overview: Off-the-Shelf Pre-Crimped Leads
- Description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail, Tin (Sn) Plated, 150.00mm Length, 22 AWG, Black
- Product Family: Cable Assemblies
- Series: 214763
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- UPC: 193264574933
- Cable Length: 150.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 0.715/g
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Single Ended: Yes
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- ROHS Phthalates: Not Contained
- Use With: Micro-Fit 3.0 Plug Housings 43020, 43640, Micro-Fit BMI Plug Housings 44300, 46625
Buy the 2147631102 MOLEX Micro-Fit 3.0 Lead | myMectronic
Purchase the MOLEX 2147631102 Pre-Crimped Lead securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2147631102?
You can click on the BUY or RFQ button to purchase 2147631102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147631102?
You can download the 2147631102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147631102?
MOLEX
