MOLEX 26604130 Power connector
The KK 396 Header from Molex is a high-quality, vertical, friction lock connector with 13 circuits and tin plating, designed for power and wire-to-board applications. It features a 3.96mm pitch, rated to handle up to 7.0A and 250V, making it suitable for durable electrical connections in various electronic assemblies. Constructed with brass material and polyester housing, this connector offers excellent longevity with multiple mating cycles. Its RoHS and UL certifications ensure compliance with industry standards, providing reliable performance in demanding environments for industrial, automation, and control projects.
MOLEX 26604130 Power connector Specifications:
- Circuits: 13
- Color - Resin: Natural
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Dimensions - Pitch: 3.96mm
- Durability (mating cycles max): 25
- Operating Temperature Range: -55°C to +105°C
- Current - Maximum per Contact: 7.0A
- Voltage - Maximum: 250V
- Flammability: 94V-0
- RoHS and UL certification
- Net Weight: 4.862 grams
- Packaging: Bag

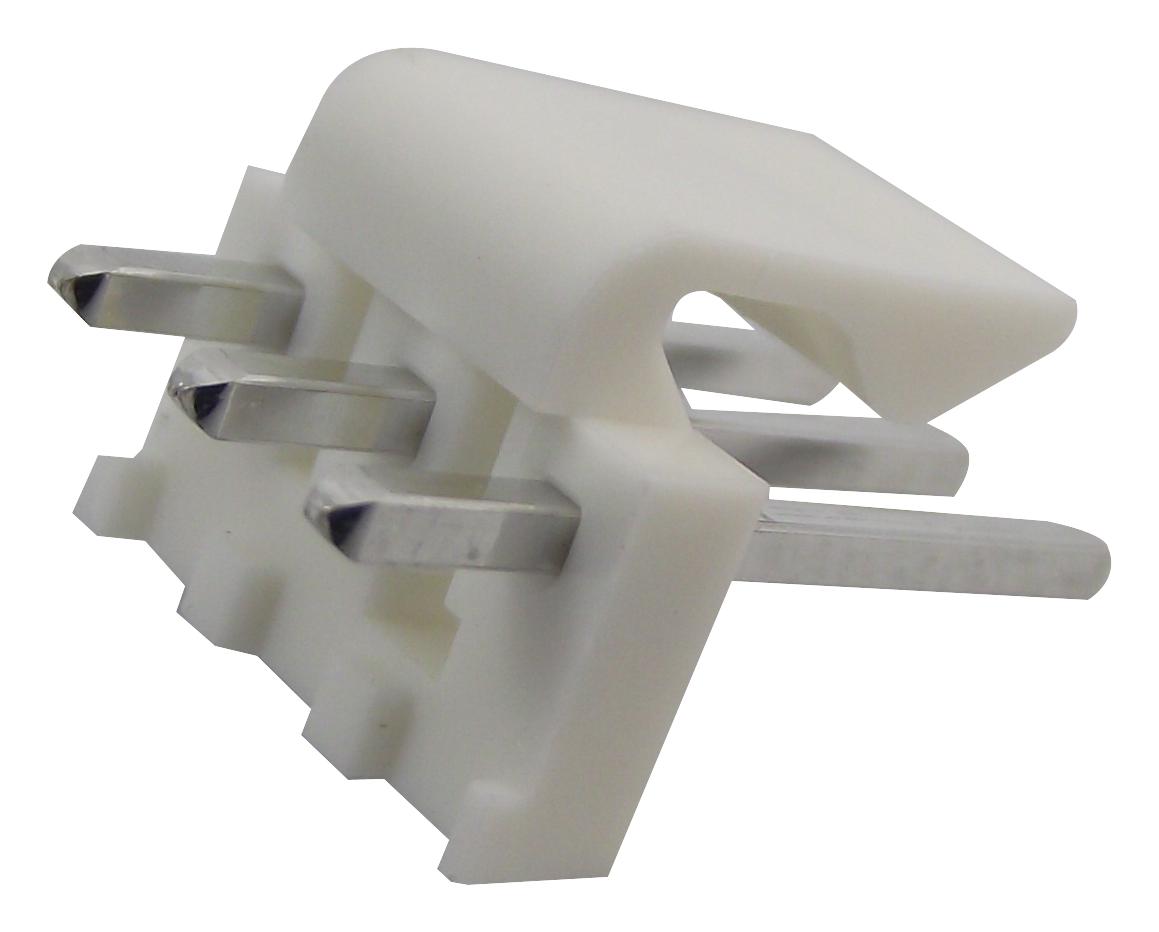

Buy the Buy Molex KK 396 Header Part Number 26604130 Online
Secure your electrical connections efficiently with the Molex KK 396 Header, featuring 13 circuits, a 3.96mm pitch, and tin plating for durability. Designed for power and wire-to-board applications, it handles up to 7A and 250V, making it ideal for industrial, automation, and control systems. Its robust brass construction and polyester housing ensure longevity through numerous mating cycles. Certified in compliance with RoHS and UL standards, this connector provides reliable, safe, and high-quality performance for your electrical and electronic projects. Order online today for fast delivery and dependable quality.
Order your Molex KK 396 Header part number 26604130 today and ensure reliable, high-performance connections for your electrical projects.
