MOLEX 2147632223 Power Connector

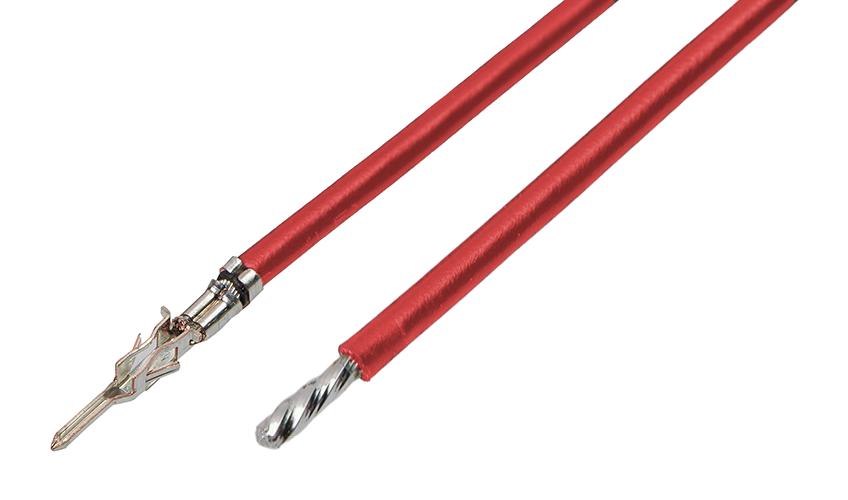

The Micro-Fit 3.0 Male-to-Pigtail is a pre-crimped lead with gold-plated contacts, designed for power and wire-to-wire applications. It features an 18 AWG wire, a 225 mm cable length, and a red color coding. Made with durable phosphor bronze metal and tin plating for reliable connections, it supports a maximum current of 8.5A per contact. Suitable for connecting Micro-Fit 3.0 plug housings, this component ensures low-resistance, corrosion-resistant electrical connections in various power distribution and control systems.
MOLEX 2147632223 Power Connector Specifications:
- Cable Length: 225.00mm
- Wire Size: 18 AWG
- Wire Insulation Diameter: 1.85mm max.
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 8.5A
- Color - Resin: Red
- Termination Interface: Style - Crimp or Compression
- Net Weight: 2.595 grams
- Plating Min - Mating: 0.762um
- Plating Min - Termination: 2.540um
- Application: Power, Wire-to-Wire
- Product Family: Micro-Fit 3.0
- Applicable with: Micro-Fit 3.0 plug housings and BMI plug housings
- RoHS Compliant: Yes
- Halogen-Free: No
- Status: Active
Buy the Buy Micro-Fit 3.0 Male-to-Pigtail Part Number 2147632223 Online
Purchase the Micro-Fit 3.0 Male-to-Pigtail online to ensure seamless wiring and power distribution in your projects. With a 225mm cable length, 18 AWG wire size, and gold-plated contacts, this connector provides excellent electrical performance. Its durable phosphor bronze construction ensures reliable connections even in harsh environments. Ideal for use with Micro-Fit 3.0 plug housings and assemblies, this pre-crimped lead is designed for high current capacity of 8.5A per contact, ensuring safe and efficient power delivery in industrial, automotive, and electronic applications. Order now for quick delivery and technical support.
Buy Micro-Fit 3.0 male pigtail with gold-plated contacts, 225mm long, and 18 AWG wiring for reliable power connections at great prices online.
Frequently Asked Questions
Where can I buy MOLEX 2147632223?
You can click on the BUY or RFQ button to purchase 2147632223 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632223?
You can download the 2147632223 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632223?
MOLEX
