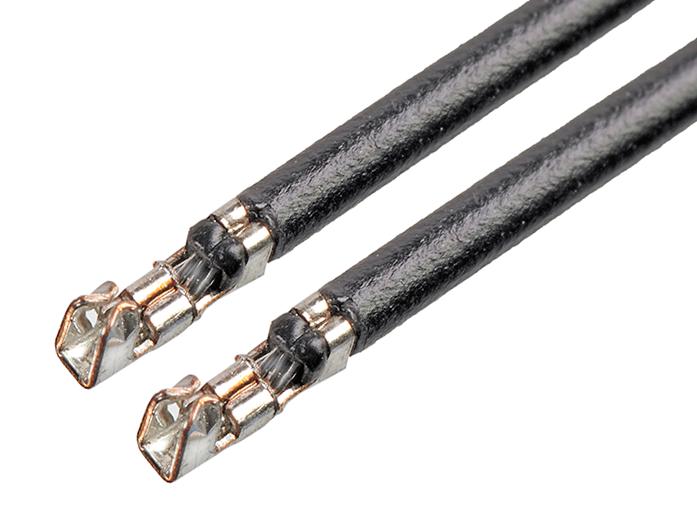

MOLEX 2149201212 PicoBlade Female-to-Female Lead
The PicoBlade Female-to-Female pre-crimped lead is a 150mm tin-plated connector designed for reliable electrical connections in various electronic applications. Made with phosphor bronze and suitable for 26 AWG wire, it ensures secure, stable contacts. Compatible with PicoBlade crimp housing 51021, this connector features a compact, durable design with a maximum current of 1.0A at 125V AC/DC. It’s RoHS and Reach SVHC compliant, halogen-free, and well-suited for automation, control systems, and electronic assemblies requiring efficient connector solutions.
MOLEX 2149201212 PicoBlade Female-to-Female Lead Specifications:
- Length: 150.00mm
- Wire Size: 26 AWG
- Wire Insulation Diameter: 1.04mm max.
- Color: Black
- Material - Metal: Phosphor Bronze
- Plating - Mating & Termination: Tin
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V AC/DC
- Connector Type: Female-to-Female
- Packaging: Bag
- Pitch - Mating Interface: 1.25mm
- RoHS and Reach SVHC Compliant
- Halogen-Free: No
- Assembly Configuration: Connector to Connector
- Product Family: PicoBlade
- Reference Drawing Number: 2149201221-000
- Material - Mating & Termination Plating: Tin
Buy the Molex Series PicoBlade Connector: 2149201212
Enhance your electronic assemblies with the Molex PicoBlade Female-to-Female pre-crimped lead, measuring 150mm and tin-plated for superior conductivity. Crafted from phosphor bronze, it supports 26 AWG wire with a maximum current of 1.0A at 125V AC/DC, ensuring reliable power and data transfer. Its compact design makes it ideal for automation, control systems, and circuit board applications. RoHS and Reach SVHC compliant, this connector offers durability and safety, delivering an excellent solution for professional wiring needs. Purchase online today for fast delivery and quality assurance.
Order your Molex Series PicoBlade 2149201212 today and ensure reliable, high-quality connections for your electronic projects.
