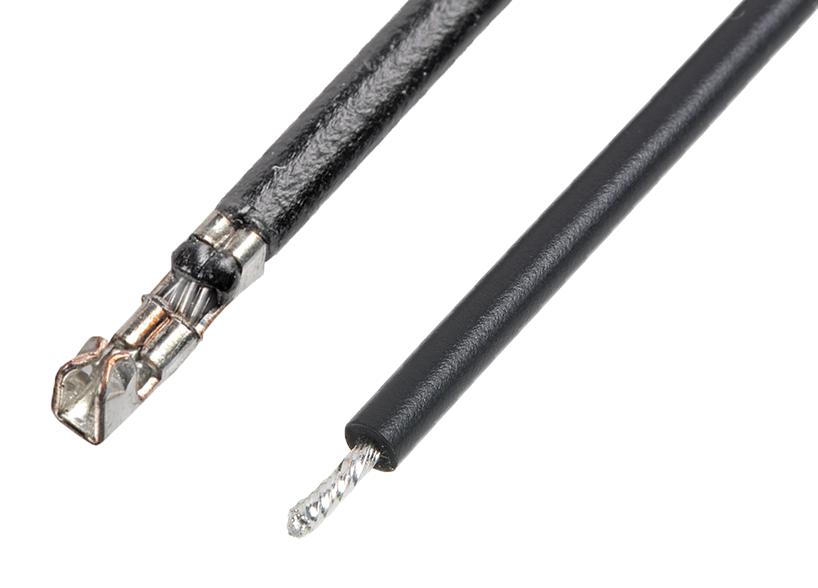

MOLEX 2149211215 PicoBlade Female-to-Pigtail
The PicoBlade Female-to-Pigtail is a pre-crimped lead designed for quick and reliable connections in electronic assemblies. Made from phosphor bronze with tin plating, this 450mm long cable is suitable for 26 AWG wires. It features a black color resin body, female gender, and a connector to connector assembly configuration. Rated for a maximum of 1.0A at 125V AC/DC, it offers durability and excellent electrical performance. Ideal for compact, high-density wiring applications, it ensures secure, corrosion-resistant connections with UL 1061 compliance.
MOLEX 2149211215 PicoBlade Female-to-Pigtail Specifications:
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 26
- Wire Insulation Diameter: 1.04mm max.
- Voltage - Maximum: 125V AC/DC
- Current - Maximum per Contact: 1.0A
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- RoHS Compliant: Yes
- Halogen-Free: No
- UL Certification: UL 1061
Buy the Buy Molex PicoBlade Part Number 2149211215 Online
Order the Molex PicoBlade Female-to-Pigtail cable online today and ensure secure, corrosion-resistant electrical connections. This pre-crimped 450mm lead is perfect for high-density electronic assemblies, offering durability, ease of installation, and UL 1061 compliance. Made from tin-plated phosphor bronze for excellent conductivity, with a compact connector-to-connector design suitable for 26 AWG wires. Suitable for various applications requiring reliable, quick-connect solutions, this black resin component is an essential part of modern wiring systems.
Buy Molex 2149211215 now and experience unmatched reliability and high-quality crimp connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2149211215?
You can click on the BUY or RFQ button to purchase 2149211215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2149211215?
You can download the 2149211215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2149211215?
MOLEX
