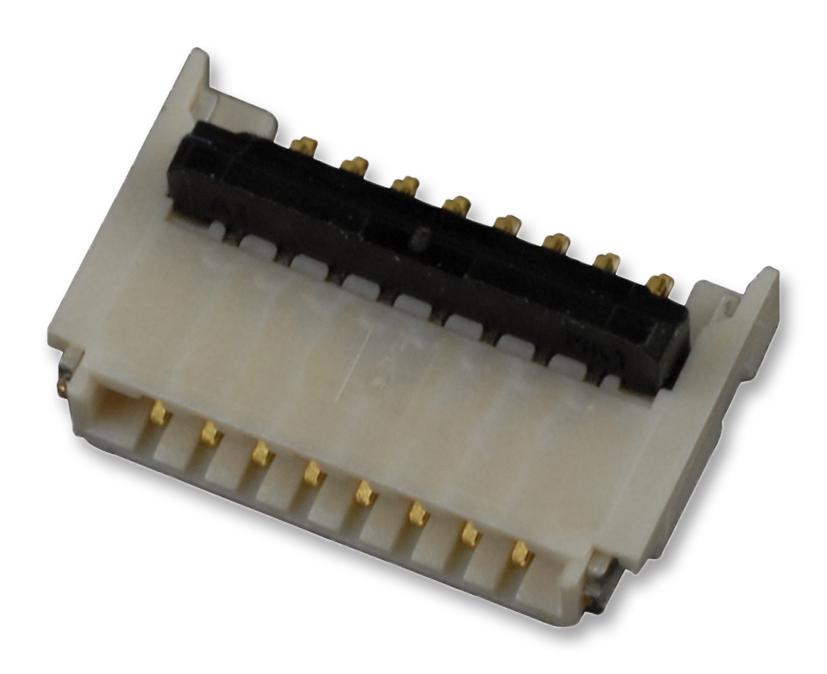

MOLEX 5034800800 FFC FPC Connector
The FFC-FPC connector with a 0.50mm pitch features a right-angle design with dual contacts, suitable for flat flexible cable and flexible printed circuit applications. It has a height of 1.00mm, 10 circuits, and a gold-plated surface for reliable electrical connections. The connector supports a maximum current of 0.5A and voltage of 50V AC/DC, with a temperature range from -40°C to +85°C. Its compact design, RoHS compliance, and UL certification make it ideal for space-constrained electronics and high-performance devices.
MOLEX 5034800800 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 10
- Color - Resin: Natural (White)
- Actuator Type: Flip
- Durability (mating cycles max): 8
- Flammability: 94V-0
- Mated Height: 1.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Gold over Nickel
- Material - Resin: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Packaging: Embossed Tape on Reel
- Orientation: Right Angle
- PCB Mounting: Surface Mount
- RoHS & REACH Compliant, UL certified, Halogen-Free, Low-Halogen
Buy the Molex 503480U– Reliable FFC-FPC Connector for Industrial Applications
Purchase the Molex FFC FPC connector with a 0.50mm pitch, right-angle, dual contact design, and gold plating. Its compact size and robust construction ensure reliable performance in space-constrained electronics for industrial, consumer, and telecom devices. Certified UL and RoHS compliant, it supports up to 0.5A and 50V, making it ideal for high-quality flexible circuit connections. Easy to install with surface mount technology, this connector ensures secure, durable, and efficient electrical connections for demanding applications.
Buy Molex 503480 now and experience unmatched reliability and high-performance connections for space-saving electronic designs.
Frequently Asked Questions
Where can I buy MOLEX 5034800800?
You can click on the BUY or RFQ button to purchase 5034800800 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5034800800?
You can download the 5034800800 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5034800800?
MOLEX
