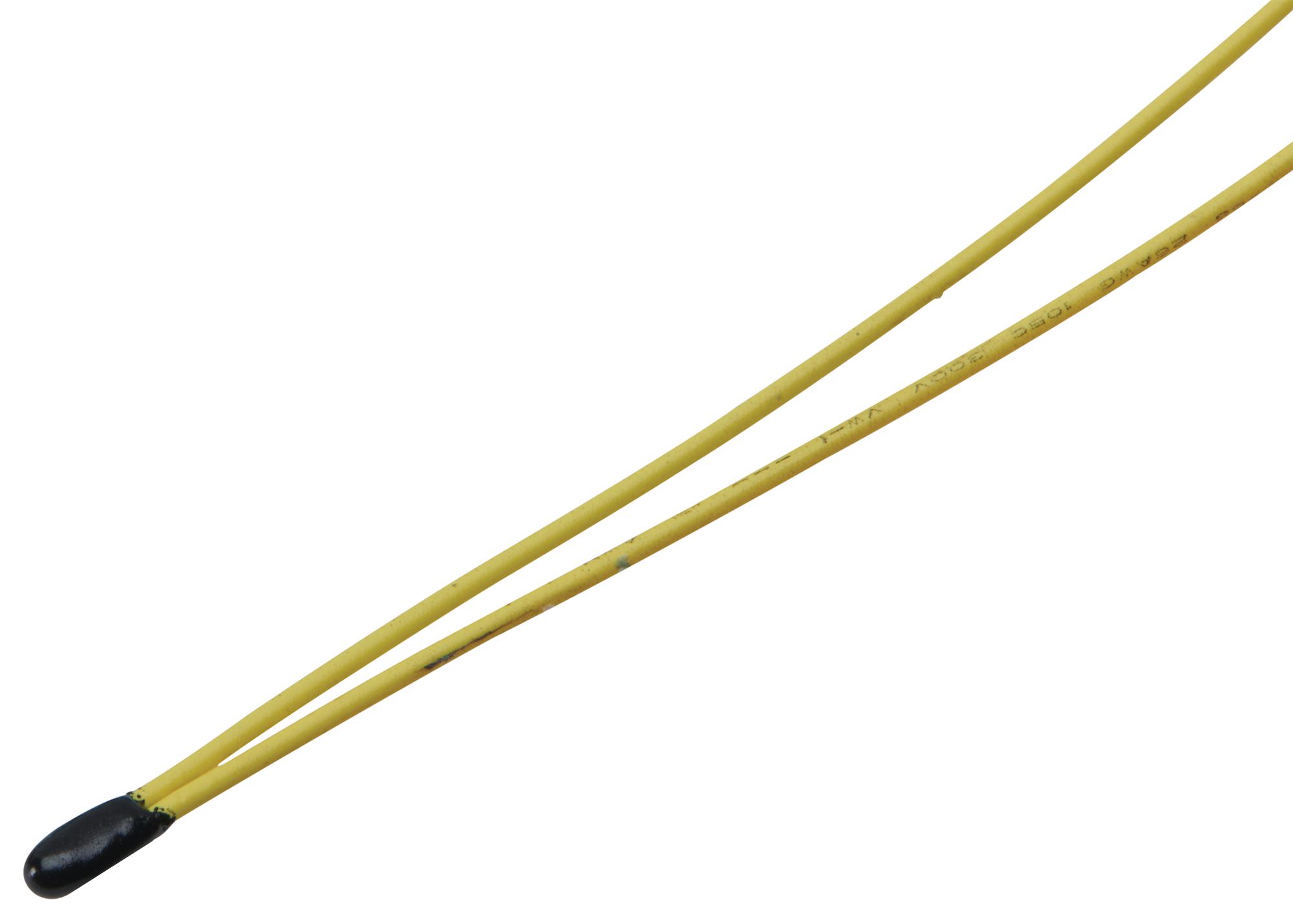

MOLEX 2152722607 NTC Temperature Sensor Cable
The MOLEX 215272-2607 is a temperature sensor cable assembly designed for temperature sensing applications. This cable features an NTC thermistor with an epoxy coating for protection. It has a length of 100mm, a beta value of 3982, and a resistance of 10k ohms at 25°C with a tolerance of ±0.2°C. The cable is single-ended and includes a yellow resin color. It is RoHS compliant and suitable for various industrial applications requiring precise temperature monitoring.
MOLEX 2152722607 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 100.00mm
- beta_value: 3982
- resistance_at_25c: 10k ohms
- resistance_tolerance: ±0.2°C (±0.88%)
- color_resin: Yellow
- cable_length: 100.00mm
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.320/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264876211
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc_compliance: lead
- halogen_free_status: Not Reviewed
