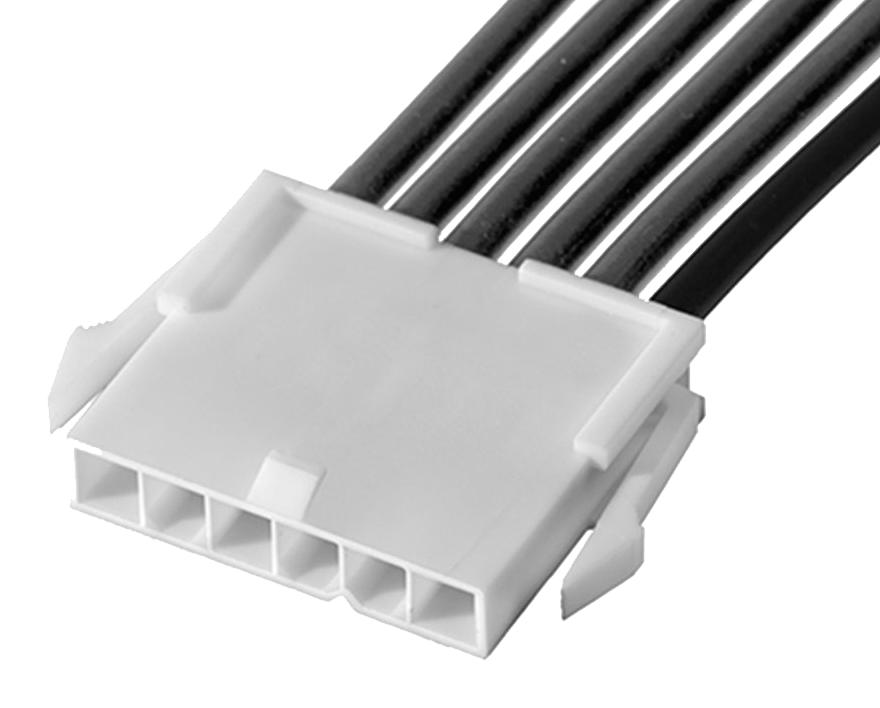

MOLEX 2153201063 Power Connector Assembly
This Mini-Fit Jr. female-to-female cable assembly features a 600 mm length with tin-plated contacts, designed for power connections in electronic systems. It offers a reliable, off-the-shelf solution with six circuits, made from durable nylon resin, and constructed with brass metal components for optimal conduction. Suitable for connector-to-connector applications, it supports up to 9.0A current and 600V voltage. Its black color and crimp or compression termination make it ideal for custom wiring solutions in various electronic devices. RoHS compliant for environmentally friendly applications.
MOLEX 2153201063 Power Connector Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Electrical Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Connection Type: Crimp or Compression
- Pitch - Mating Interface: 4.20mm
- RoHS Compliance: Yes
- UL Standard: UL 1015
- Status: Active
Buy the Buy Molex Mini-Fit Jr. Part Number 2153201063 Online
Purchase the Molex Mini-Fit Jr. power cable assembly with 600 mm length, six circuits, and tin-plated contacts. Designed for connector-to-connector applications, it supports up to 9A current and 600V voltage, ensuring high reliability. Made with durable nylon resin and brass components, it is optimal for power distribution in electronic devices. The black nylon housing simplifies installation, while crimp or compression terminations provide secure connections. RoHS compliant, this assembly is suitable for a wide range of industrial and consumer electronic applications, ensuring long-lasting performance and environmental safety.
Get Molex Mini-Fit Jr. 2153201063 today—engineered for reliable power connections, durable construction, and ease of assembly in electronic systems.
