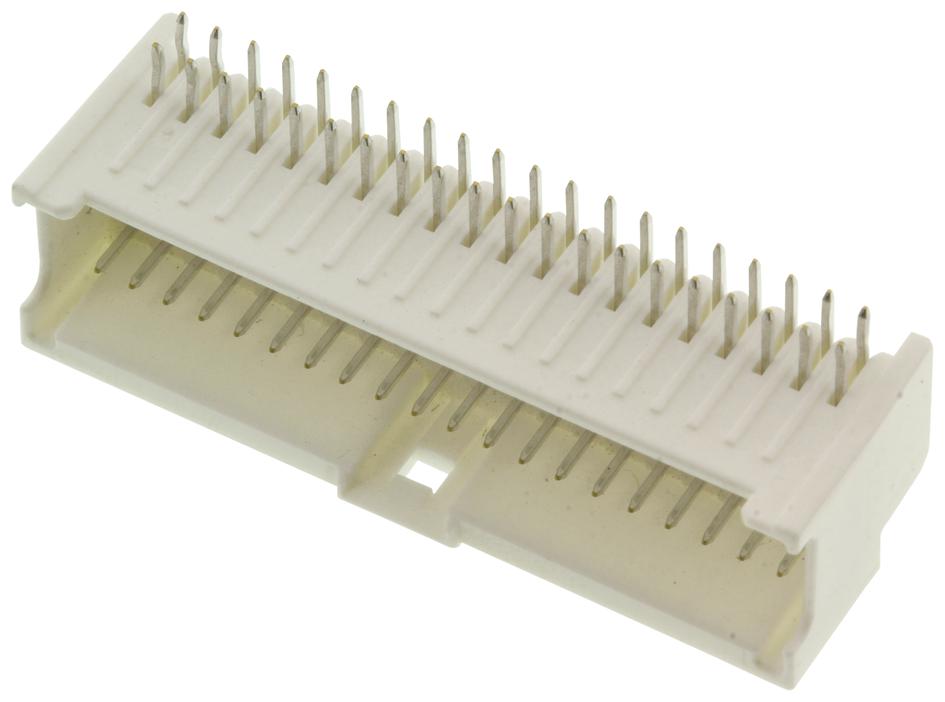

MOLEX 559591030 MicroClasp Wire-to-Board Header
The MOLEX 55959-1030 MicroClasp wire-to-board header is a compact and robust solution for connecting wires to printed circuit boards. Its 2.00mm pitch and right-angle design make it suitable for space-constrained applications. The header features a dual-row configuration with 10 circuits, providing ample connectivity for signal transmission. It is designed for signal applications and offers a durable, secure connection with a locking mechanism. This header is RoHS compliant and suitable for a wide range of industrial and consumer electronics applications.
MOLEX 559591030 MicroClasp Wire-to-Board Header Specifications:
- Product Family: PCB Headers
- Series: 55959
- Application: Signal, Wire-to-Board
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Color - Resin: Natural
- Durability (mating cycles max): 30
- First Mate / Last Break: No
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.20mm
- PCB Locator: No
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Pitch - Mating Interface: 2.00mm
- Shrouded: Fully Stackable
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -25° to +85°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Mates With: 51353 MicroClasp Wire-to-Board Receptacle Housing
