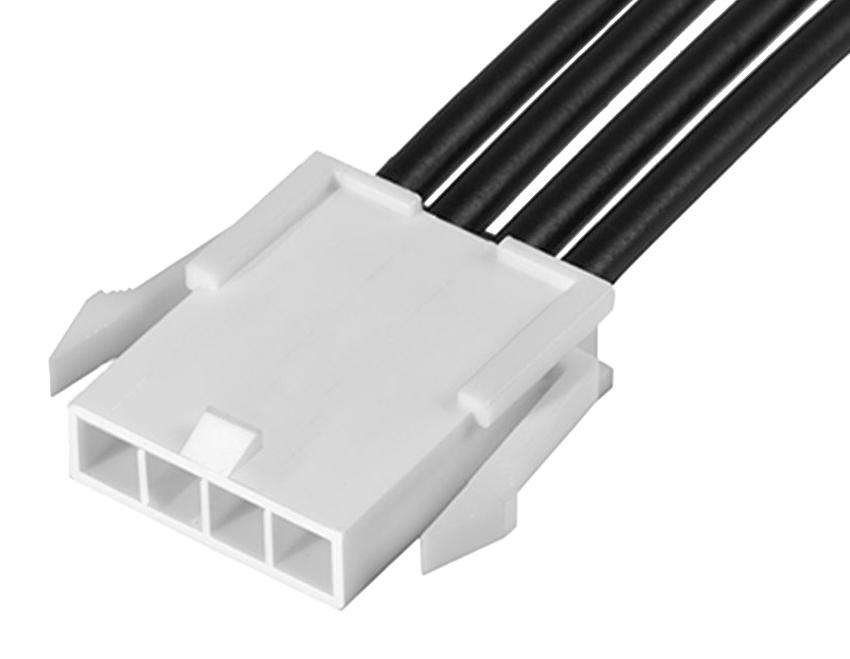

MOLEX 2153202043 Power Cable Assembly
This Mini-Fit Jr. Female-to-Female Cable Assembly is designed for power and signal applications, featuring a 600mm length with four circuits. It is constructed with quality brass and plated with gold for reliable connectivity. The assembly uses crimp or compression termination interfaces suitable for wire sizes between 1.80 and 3.10mm and supports up to 9.0A current and 600V voltage ratings. Its black nylon housing ensures durability, and it is RoHS and REACH compliant, ideal for automotive, industrial, and electronic projects requiring robust wire-to-wire connections.
MOLEX 2153202043 Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 4
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 2.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface: Crimp or Compression
- Wire/Cable Type: Discrete Wire
- Packaged: Bag
- RoHS Compliant: Yes
- REACH SVHC: Not Contained
- Halogen-Free: No
- Application: Power and signal connections
- Connector Series: Mini-Fit Jr.
- Compatible Mates: Mini-Fit Jr. Headers and Plugs
Buy the Molex 2153202043 – Reliable Power and Signal Connectors for Industrial Applications
Enhance your electronic and industrial projects with Molex's Power Cable Assembly, featuring four circuits with a 600mm length, gold plating, and robust nylon housing. Designed for power and signal transmission, it supports up to 9A current and 600V voltage ratings, ensuring reliable performance. The assembly’s crimp or compression termination provides secure connections for wire sizes from 1.80 to 3.10mm. RoHS and REACH compliant, this connector is perfect for industrial automation, electronics, and automotive applications requiring durable, high-quality wire-to-wire connections.
Get Molex 2153202043 today—built for precision and long-lasting durability in industrial and electronic wiring projects.
