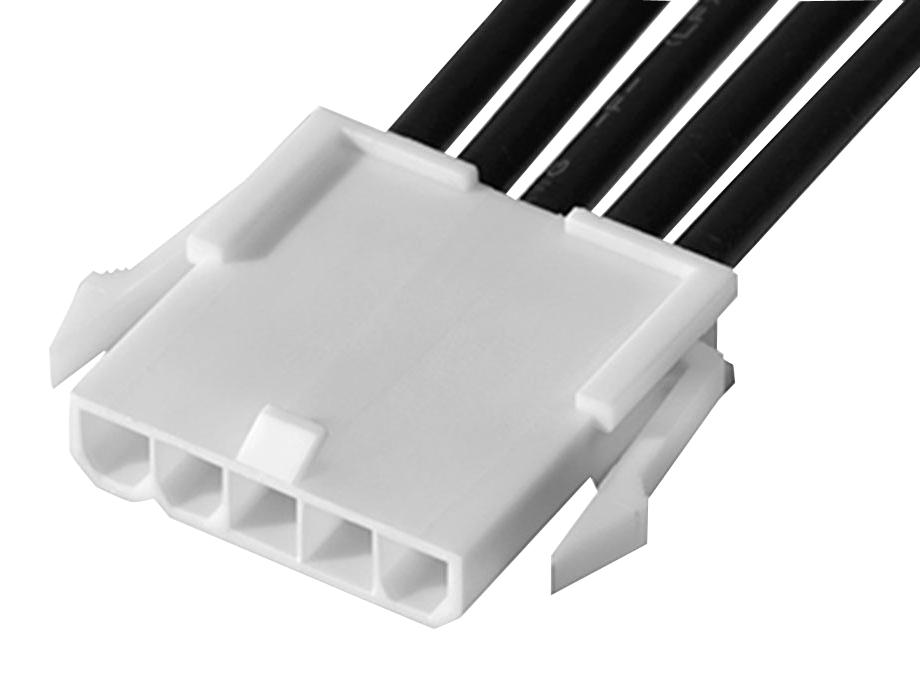

MOLEX 2153211053 Mini-Fit Jr. Power Connector
The Mini-Fit Jr. Female-to-Pigtail Cable Assembly is a versatile power connector designed for reliable power transmission in electronic devices and electrical systems. Featuring a 600mm cable length, five circuits, and tin plating, this assembly is ideal for applications requiring durable and efficient connections. Constructed with brass terminals and nylon insulation, it offers a maximum current of 9A at 600V. Suitable for wire sizes 0.889mm (16 AWG), it provides a secure, lock-to-mating connection for both wire-to-wire and wire-to-board configurations, ensuring long-lasting performance and compliance with RoHS standards.
MOLEX 2153211053 Mini-Fit Jr. Power Connector Specifications:
- Cable Length: 600.00mm
- Circuits (Loaded): 5
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Size AWG: 16
- Wire Insulation Diameter: 0.889mm
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Connector Type: Power, Wire-to-Wire
- Assembly Configuration: Single Ended
- Lock to Mating Part: Yes
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- RoHS and REACH compliant
Buy the Molex Series Mini-Fit Jr. Power Connector: 2153211053
Order the Molex Mini-Fit Jr. female-to-pigtail power connector online today and enjoy reliable, durable power transmission for your electronic systems. With a 600mm cable length and five circuits, this connector features tin-plated brass contacts and nylon insulation, ensuring long-lasting performance. Suitable for wire sizes 16 AWG and handling up to 9A at 600V, it is ideal for wire-to-wire or wire-to-board configurations. Purchase now for excellent connectivity and RoHS compliance, ensuring your project meets high safety standards.
Get Molex 2153211053 today—built for reliable power connections in demanding electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 2153211053?
You can click on the BUY or RFQ button to purchase 2153211053 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153211053?
You can download the 2153211053 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153211053?
MOLEX
