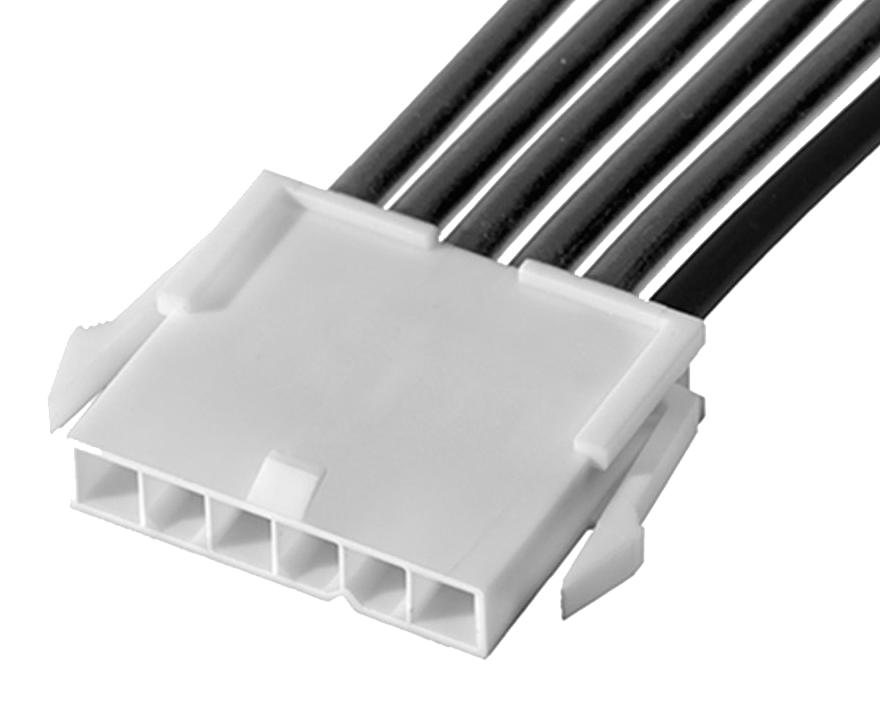

MOLEX 2153211062 Power Connector
The Mini-Fit Jr. Female-to-Pigtail Off-the-Shelf Cable Assembly is a 300mm long, black, single-row power connector designed for reliable power transmission. It features six circuits with tin (Sn) plating on brass contacts, ensuring excellent conductivity and corrosion resistance. Suitable for wire-to-wire and wire-to-board applications, this assembly uses crimp or compression termination styles with wire insulation diameters of 1.80-3.10mm and wire sizes of 16 AWG. RoHS compliant, it provides a maximum current of 9.0A and a voltage rating of 600V, making it ideal for high-power electronic systems.
MOLEX 2153211062 Power Connector Specifications:
- Series: Mini-Fit Family Power Connectors
- Application: Power, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Cable Length: 300.00mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating & Termination: Tin
- Material - Resin: Nylon
- Net Weight: 43.183 g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Plating Min - Mating & Termination: 0.889 µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: Discrete Wire
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- RoHS: Compliant
- Halogen-Free: No
- Status: Active
Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 2153211062 Online
Purchase the Molex Mini-Fit Jr. female-to-pigtail connector online today for reliable power distribution in your electronic systems. With a 300mm cable length, six circuits, and tin-plated brass contacts, this assembly ensures excellent conductivity and corrosion resistance. Suitable for wire-to-wire and wire-to-board applications, it features a crimp or compression termination for secure connections. RoHS compliant and rated for 9A at 600V, this compact and high-performance connector is ideal for demanding power applications in industrial, consumer, and electronic device manufacturing.
Order your Molex Series Mini-Fit Jr. 2153211062 today and give your electronic projects the dependable high-current power connection they deserve.
