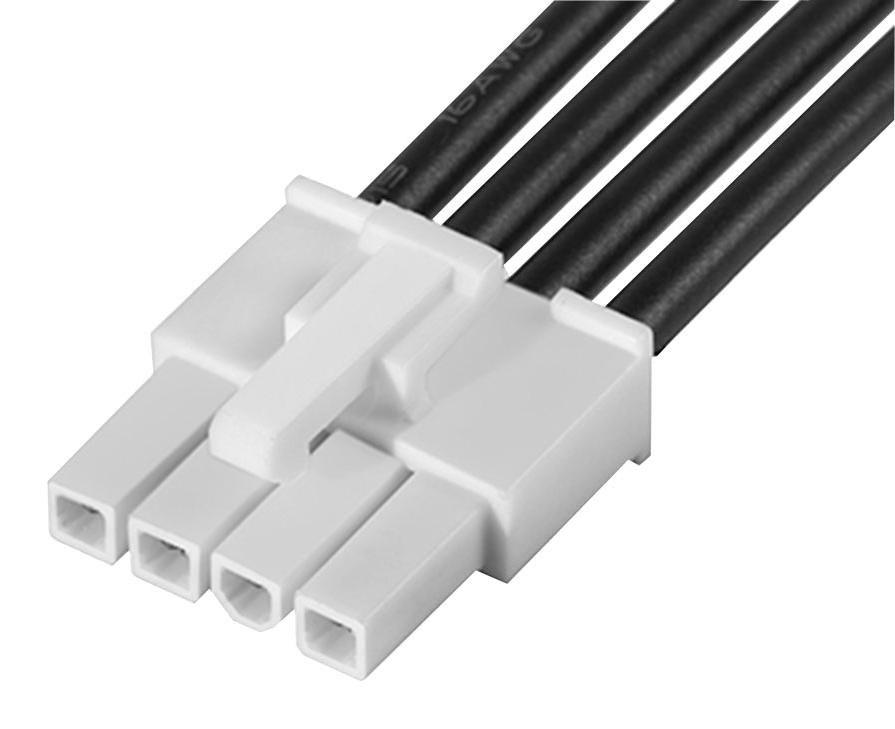

MOLEX 2153222041 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-2041 is a Mini-Fit Jr. male-to-male cable assembly designed for power and wire-to-wire applications. It offers a robust connection solution with a 150mm cable length, 4 circuits, and a black nylon resin housing. The gold plating on the mating interface and tin plating on the termination provide excellent conductivity and durability, making it suitable for various industrial and commercial applications. This assembly is RoHS compliant and supports a maximum current of 9.0A at a maximum voltage of 600V.
MOLEX 2153222041 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 150.00mm
- circuits_loaded: 4
- color_resin: Black
- gender: Male-Male
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 19.650/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264597451
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
- drawing_number: 2153222041-000
