MOLEX 2177971053 KK 254 Cable Assembly

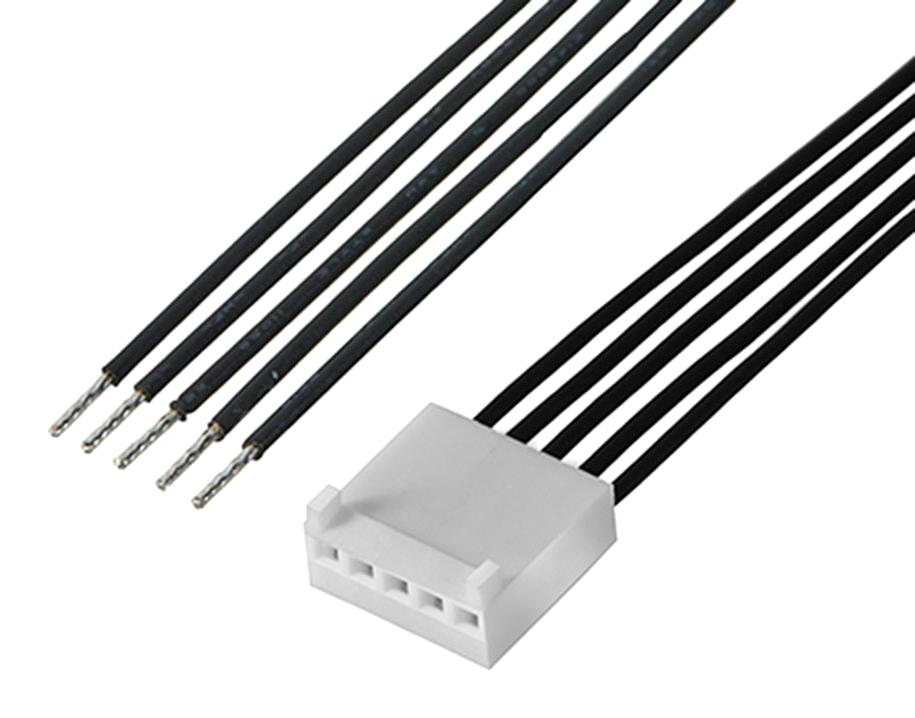

The MOLEX 217797-1053 is a KK 254-to-Pigtail Off-the-Shelf (OTS) cable assembly, offering a pre-configured solution for various applications. With a length of 600.00mm and 5 circuits, this assembly provides a convenient and efficient connection. Its 2.54mm pitch and female-pigtail gender make it suitable for connecting to KK254 PCB headers and other compatible components. Constructed with brass and nylon materials, and featuring tin plating for both mating and termination interfaces, this cable assembly ensures reliable performance and durability.
MOLEX 2177971053 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: Connector to Connector
- Pitch - Mating Interface: 2.54mm
- Circuits (Loaded): 5
- Color: Natural (White)
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 13.453/g
- Number of Rows: 1
- Single Ended: No
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- Cable Length: 600.00mm
- Lock to Mating Part: Yes
- UPC: 195842123090
