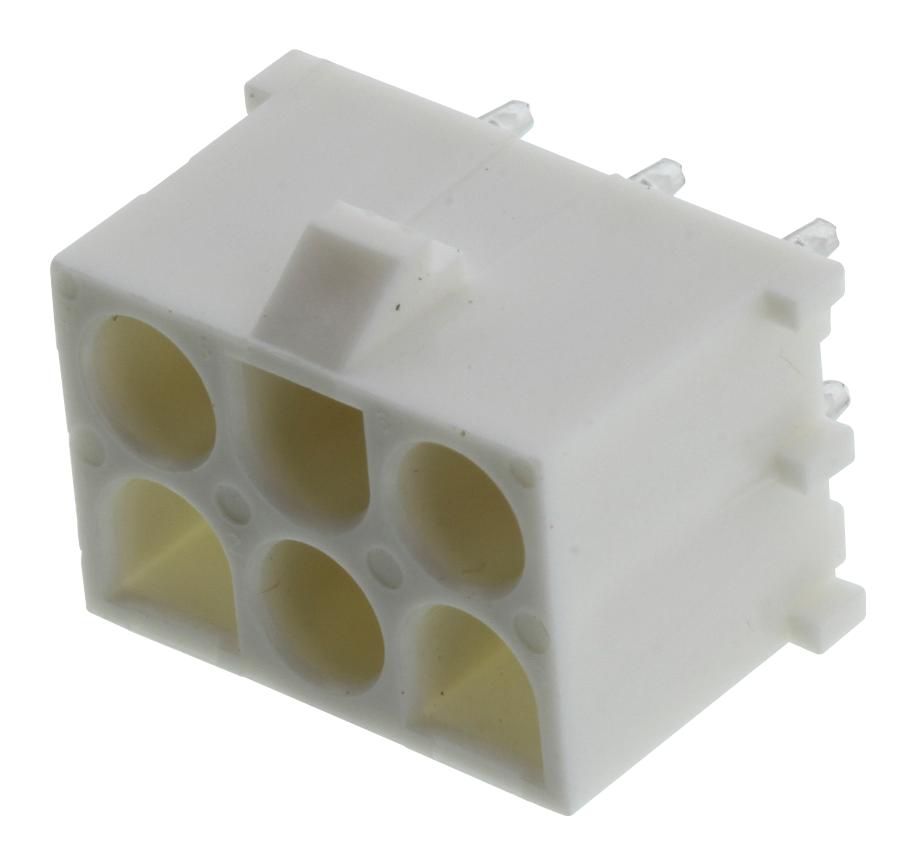

MOLEX 432550083 Power Connector Header
The MLX Power Connector Header features a 6.35mm pitch with a 2.13mm contact diameter, designed for high vibration environments. Made from polyester with UL 94V-0 flammability rating, it includes a plastic polarizing peg for secure mating. This vertical connector supports six circuits, with tin plating on phosphor bronze contacts, offering reliable conductivity. Suitable for board-to-board and wire-to-board applications, it operates within -55°C to +105°C. It ensures up to 10.16mm mated height, has PCB retention, and withstands 20A per contact at 600V, ideal for power distribution in demanding environments.
MOLEX 432550083 Power Connector Header Specifications:
- Pitch: 6.35mm
- Contact Diameter: 2.13mm
- Number of Circuits: 6
- Material - Resin: Polyester UL 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Temperature Range: -55°C to +105°C
- Maximum Current per Contact: 20A
- Maximum Voltage: 600V
- Mated Height: 10.16mm
- Lock to Mating Part: Yes
- PCB Thickness - Recommended: 1.60mm
- Durability (mating cycles max): 430
- Surface Mount Compatible: No
- Shrouded: Yes
- Stackable: No
- Color - Resin: Natural
- Net Weight: 3.872 grams
Buy the Buy Molex Power Connector Header Part Number 0432550083 Online
Purchase the Molex power connector header online to ensure a secure, high-performance connection for power and signal distribution. Designed for challenging environments, it features a 6.35mm pitch, 6 circuits, and UL 94V-0 polyester housing for safety. With tin-plated phosphor bronze contacts capable of 20A at 600V, it offers durability up to 430 mating cycles. Its vertical orientation with PCB retention makes installation easier. Ideal for board-to-board and wire-to-board applications, this connector guarantees reliable, long-lasting performance in demanding industrial setups.
Buy Molex 0432550083 power connector header now and experience reliable power distribution with high vibration tolerance and robust construction.
Frequently Asked Questions
Where can I buy MOLEX 432550083?
You can click on the BUY or RFQ button to purchase 432550083 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 432550083?
You can download the 432550083 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 432550083?
MOLEX
