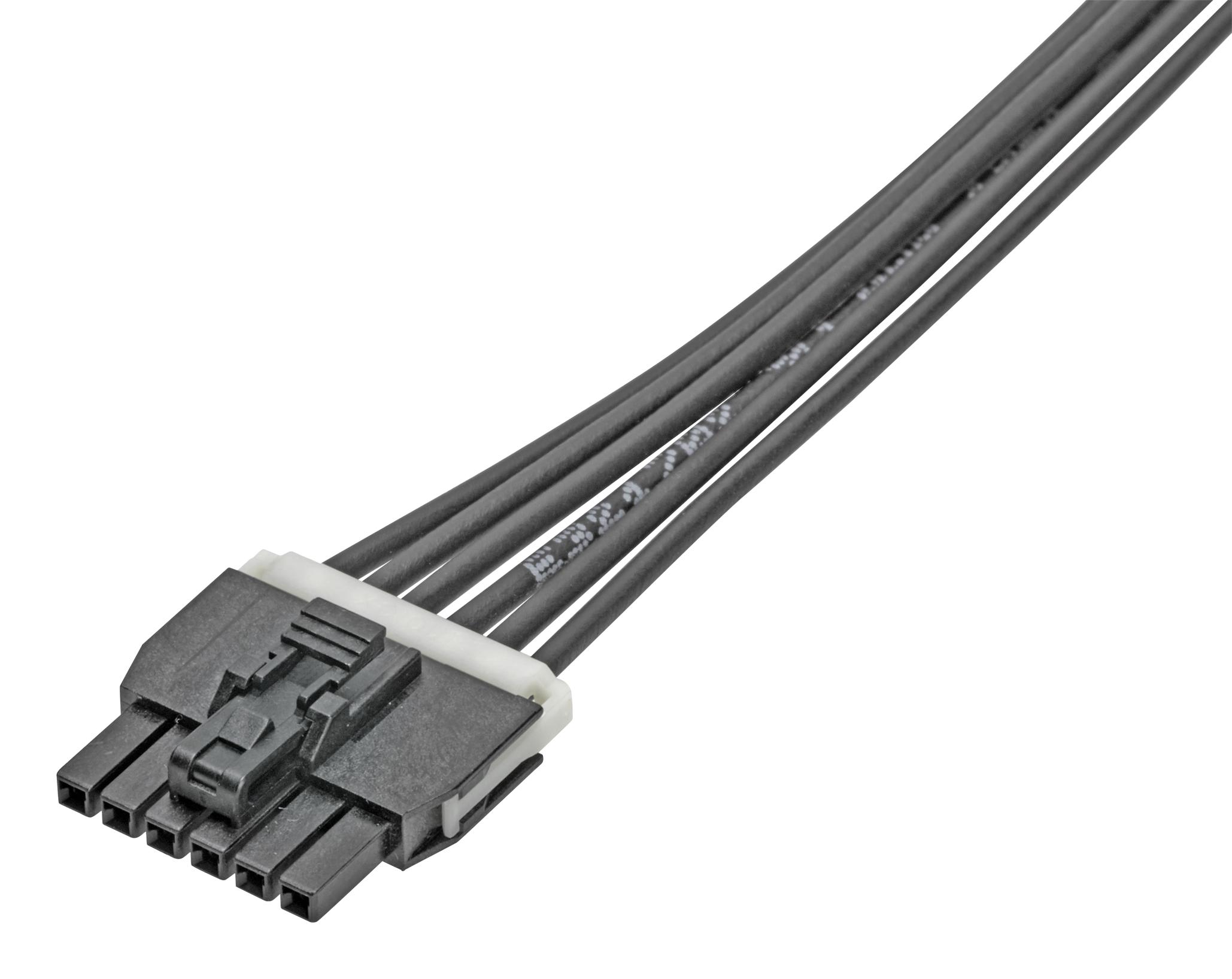

MOLEX 1451300600 Nano-Fit OTS Cable Assembly
The MOLEX 145130-0600 Nano-Fit Power Connector is a dual-ended cable assembly designed for secure and efficient power transmission in wire-to-board applications. This OTS (Off-The-Shelf) assembly boasts a 75mm length and 6 circuits, making it suitable for various electronic devices and systems. Constructed with a black nylon resin overmold and featuring matte tin plating on both mating and termination interfaces, this connector ensures excellent conductivity and durability. It is RoHS compliant and designed to mate with Nano-Fit headers, providing a robust and reliable connection solution.
MOLEX 1451300600 Nano-Fit OTS Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Series: 145130
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connector Type: Nano-Fit-to-Nano-Fit
- Length: 75.00mm
- Circuits: 6
- Color: Black
- Material - Resin: Nylon
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Mates With: Nano-Fit Headers 105309, 105311, 105325
- Net Weight: 6.670/g
