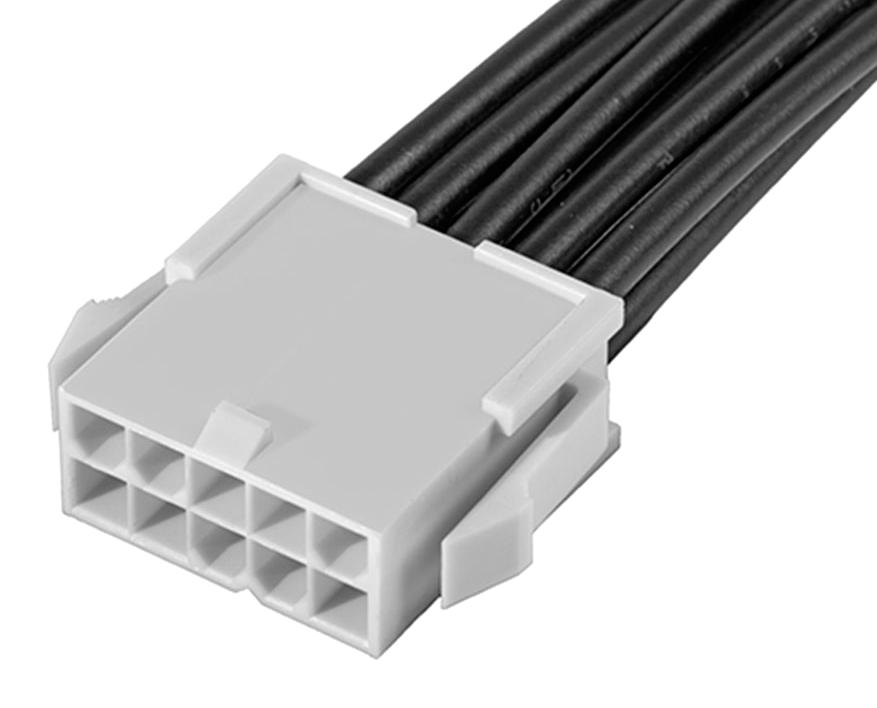

MOLEX 2153252101 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-2101 is a Mini-Fit Jr. female-to-female off-the-shelf cable assembly designed for power applications, including wire-to-board and wire-to-wire connections. This assembly features a dual-row configuration with 10 circuits and utilizes gold plating on the mating interface for enhanced conductivity and durability. Constructed with brass and nylon materials, it offers a robust and reliable solution for various industrial and commercial applications. The RoHS compliant design ensures environmental responsibility, making it a suitable choice for modern electronic systems.
MOLEX 2153252101 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 150.00mm
- circuits_loaded: 10
- color: Black (Resin)
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 43.087/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264589913
- series: 215325
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
