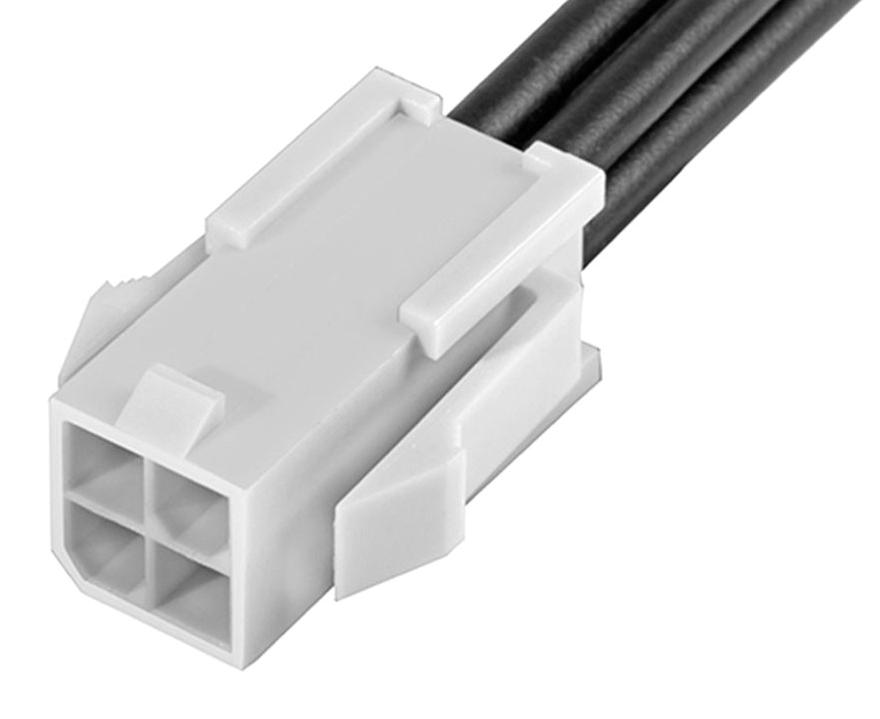

MOLEX 2153262042 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-2042 is a Mini-Fit Jr. female-to-pigtail cable assembly, ideal for power, wire-to-board, and wire-to-wire applications. This assembly offers a robust connection solution with a 300mm length, 4 circuits, and gold plating on the mating interface for enhanced conductivity and durability. The nylon resin material ensures insulation and protection, making it suitable for various industrial and commercial environments.
Authorized Distributors
Source:Mouser Electronics
Part No:215326-2042
Stock:4
Inv Date:05-30-2026
Price: Unit price: $4.31
Buy/RFQ:
Source:RS Americas, Inc
Part No:215326-2042
Stock:0
Inv Date:05-29-2026
Price: Unit price: $3.09
Buy/RFQ:
MOLEX 2153262042 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 28.613/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264590131
- series: 215326
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153262041-000
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- halogen_free: Not Low-Halogen
