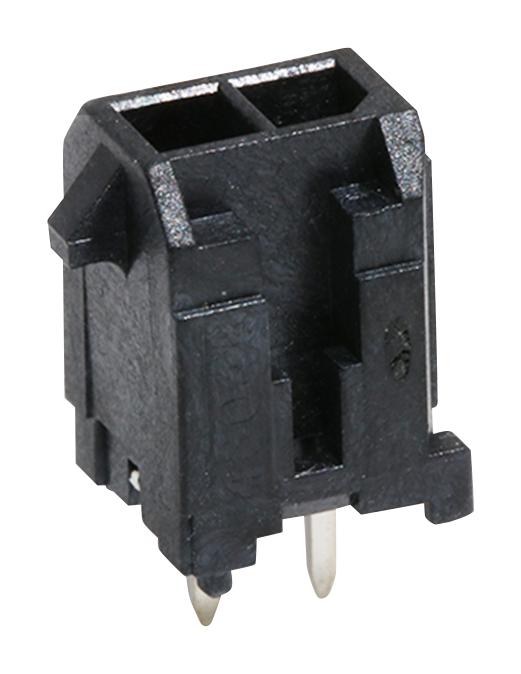

MOLEX 430450228 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header is a reliable and compact connector system with a 3.00mm pitch, dual row configuration, and 2 circuits. Designed for power and wire-to-board applications, it features PCB polarizing, gold plating, and glow-wire capability, ensuring safety and durability. Made from high-temperature thermoplastic, it supports up to 8.5A current and 600V voltage, with a maximum operating temperature of +105°C. Its sturdy brass contact and 94V-0 flammability rating make it suitable for various industrial and electronic projects requiring robust connections.
MOLEX 430450228 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits: 2, maximum 2
- Color - Resin: Black
- Durability: 30 mating cycles maximum
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Mated Height: 17.64mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- PCB Tail Length: 3.18mm
- Surface Mount Compatible: Yes
- Packaging: Tray
- Polymer Flammability: 94V-0
- Pin Spacing (Mating Interface): 3.00mm
- Termination Style: Through Hole
- PCB Thickness - Recommended: 1.60mm
Buy the Molex 0430450228 – Reliable Micro-Fit 3.0 Connector for Industrial Applications
Enhance your electronic assemblies with the Molex Micro-Fit 3.0 Vertical Header, offering a 3.00mm pitch, dual-row configuration, and high-temperature thermoplastic housing. Perfect for power and wire-to-board connections, it supports up to 8.5A current at 600V. Its glow-wire capability, 30 mating cycles durability, and gold-plated contacts ensure safety and longevity. Ideal for industrial equipment and electronic systems requiring robust, compact, and reliable connections, available for easy online purchase now.
Order your Molex Series0430450228 Micro-Fit 3.0 Vertical Header today and give your projects the dependable quality they deserve, supporting high current and thermal stability.
Frequently Asked Questions
Where can I buy MOLEX 430450228?
You can click on the BUY or RFQ button to purchase 430450228 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450228?
You can download the 430450228 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450228?
MOLEX
